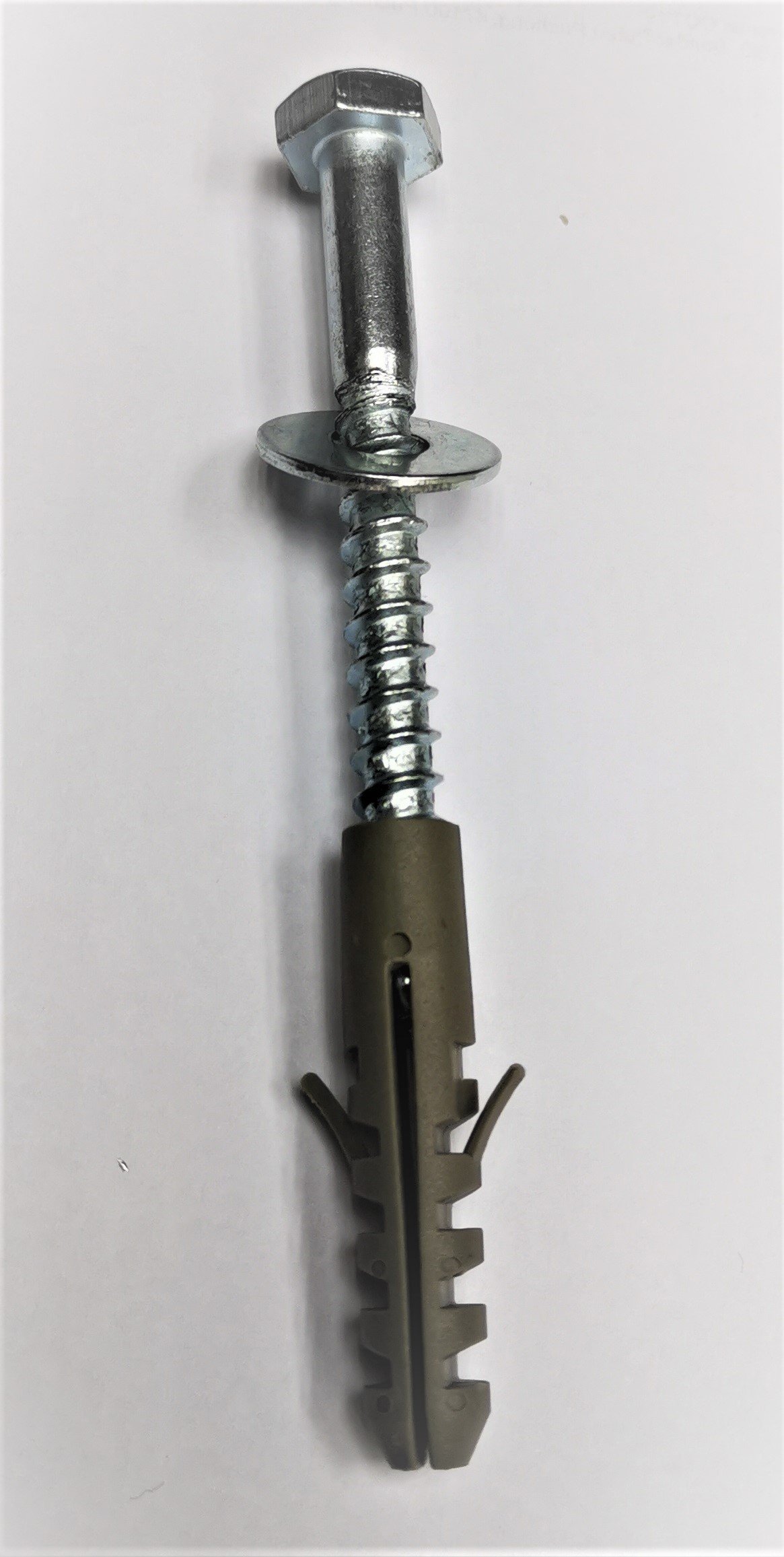

Coach Screw With Nylon Plug
Product Overview
Blue Box Asia supplies a standard grade coach screw with nylon plug for fixing rubber speed humps and other rubber products, and rubber or metal bollards. Each set holds one M10 coach screw and one nylon plug matched to the screw, sold per piece. A coach screw with nylon plug is cheap, usable and quick to install, which makes it a practical choice for both single installations and large road or car park projects.
Pair this coach screw with nylon plug with speed humps and traffic safety equipment, access control and bollards and parking safety solutions such as wheel stops. For factory and warehouse layouts, see our workplace safety systems, infrastructure protection range and custom safety projects. Browse the full catalogue at the Blue Box Asia homepage.
Proper anchoring supports workplace and road safety obligations. Refer to DOSH Malaysia for occupational safety guidance and the WHO road traffic injuries fact sheet for the role of speed management in reducing injuries. A secure coach screw with nylon plug keeps speed control devices where they belong.
Product Specifications
| Product | Coach screw with nylon plug |
| SKU family | B01-00178 |
| Thread | M10 |
| Grade | Standard (normal) grade |
| Screw material | Zinc-plated steel |
| Head type | Hex head coach screw |
| Set contents | 1 coach screw + 1 nylon plug |
| Plug size | Matched to the screw |
| Sold per | Piece / set |
| Use | Rubber speed humps, rubber products, rubber and metal bollards |

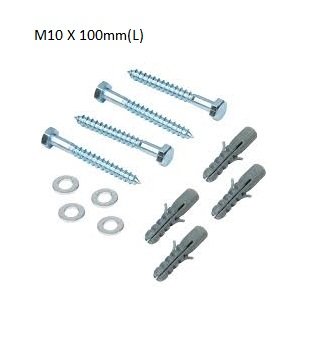

| Size | SKU | Weight per set |
|---|---|---|
| M10×75 | B01-00178-75 | 15 g |
| M10×90 | B01-00178-90 | 20 g |
| M10×100 | B01-00178-100 | 25 g |
| M10×120 | B01-00178-120 | 30 g |
PRO Tips
| PRO TIPS FOR COACH SCREW WITH NYLON PLUG

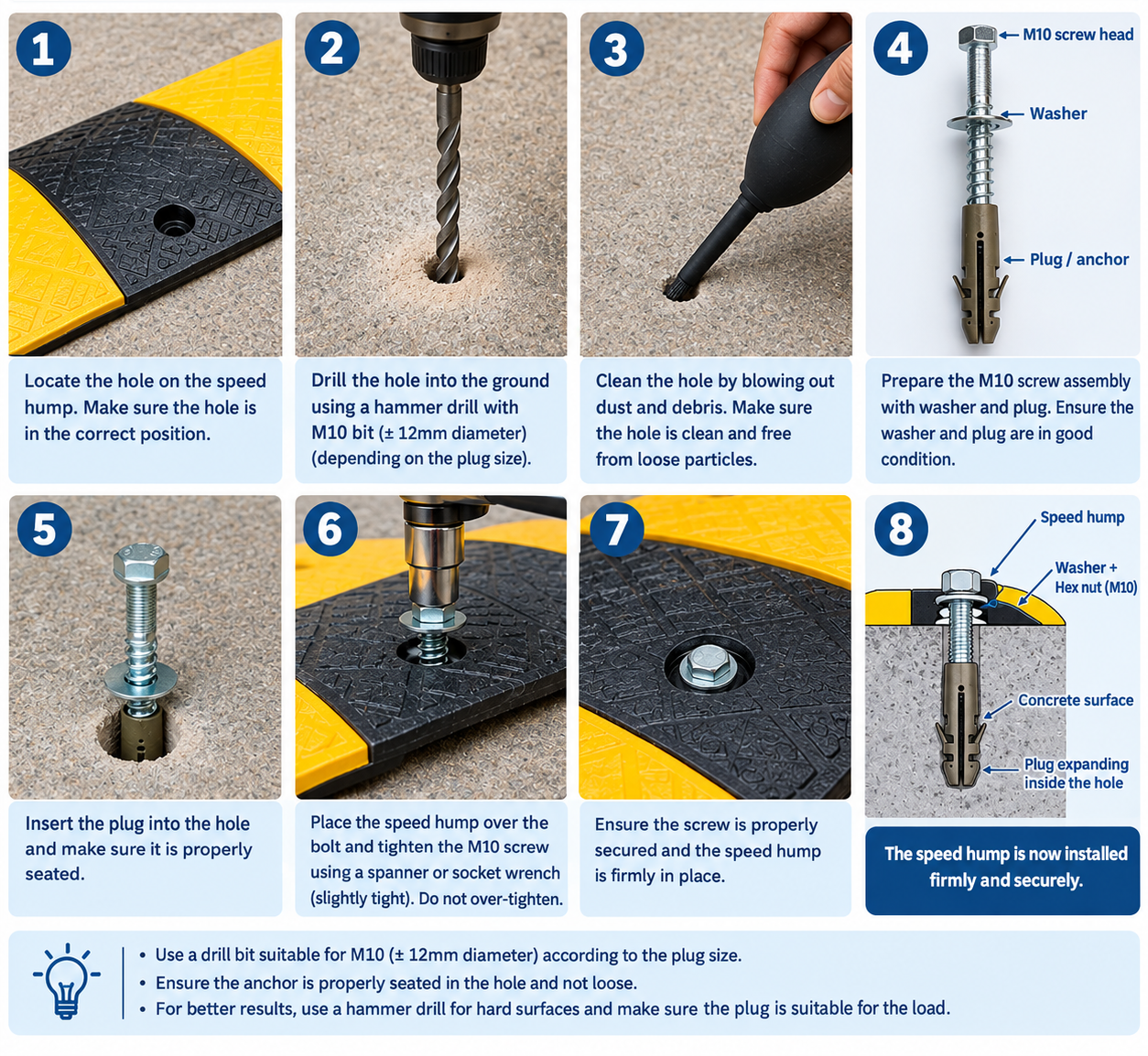

1. Drill the hole to the nylon plug size, and drill about 10mm deeper than the screw length to clear dust. 2. Clean dust from the hole with a brush or blower before inserting the plug. 3. Insert the nylon plug flush with the surface before placing the product. 4. Choose a coach screw length that passes through the rubber and embeds well into concrete. 5. Tighten with a spanner or socket, and stop when the head is snug to avoid crushing rubber. 6. Use one coach screw with nylon plug per mounting hole, and do not skip holes. 7. Re-check tightness after the first weeks of traffic and re-tighten if needed. |
Applications
| Road & traffic | Fixing rubber speed humps and speed bumps to concrete surfaces |
| Parking & warehouse | Securing wheel stoppers, rubber bollards and rubber guards in car parks and warehouses |
| Industrial & site | Anchoring metal bollard base plates and other rubber or metal safety products |
Features & Benefits
| Feature | Benefit |
|---|---|
| Standard grade | Cheap and usable for everyday fixing jobs |
| M10 diameter | Suits mounting holes on major rubber humps and bollard bases |
| Matched nylon plug | No separate plug sizing or sourcing |
| 4 lengths | 75, 90, 100 and 120mm cover thin to thick products |
| Hex head | Fast fitting with spanner or socket |
| Sold per set | Buy exactly what you need, or in bulk |
Frequently Asked Questions
- What is a coach screw with a nylon plug used for?
A coach screw with nylon plug fixes rubber speed humps, wheel stoppers and bollards to concrete or asphalt-on-concrete surfaces. The nylon plug grips the drilled hole while the coach screw draws the product down firmly.
- Which sizes of coach screw with nylon plug are available?
We supply four M10 sizes: 75mm (B01-00178-75), 90mm (B01-00178-90), 100mm (B01-00178-100) and 120mm (B01-00178-120).
- How much does each coach screw set weigh?
One set (1 coach screw + 1 nylon plug) weighs 15 g for M10×75, 20 g for M10×90, 25 g for M10×100 and 30 g for M10×120.
- How is the coach screw with a nylon plug sold?
It is sold per piece, meaning one set of one coach screw and one matching nylon plug. Bulk quantities are available for projects.
- Does the nylon plug match the screw size?
Yes. The nylon plug size is matched to the M10 coach screw, so you do not need to buy them separately.
- Can I use it for both rubber humps and bollards?
Yes. This standard grade coach screw with nylon plug is used for major rubber speed humps, other rubber products, and rubber or metal bollard fixing.
- Which length should I choose?
Choose the length from the product thickness plus the embedment depth needed in concrete. Thicker rubber humps generally need the 100mm or 120mm size; thin bases can use 75mm or 90mm.
- Do you supply to Selangor and all Malaysia?
Yes. Blue Box Asia is based in Selangor and delivers coach screw with nylon plug orders across Malaysia. Contact us for a quotation.
Customer Pain Points vs Solutions
| Pain point | Our solution |
|---|---|
| Fixings cost too much on large projects | A cheap, standard grade coach screw with nylon plug keeps per-unit cost low across many humps and bollards. |
| Unsure which screw fits the product | Four clear M10 sizes with SKU codes make selection simple. |
| Plug and screw sold separately, sizes mismatch | Each set includes a nylon plug matched to the coach screw. |
| Rubber humps shift or lift over time | Anchoring with coach screws and nylon plugs holds humps firmly against traffic. |
| Slow sourcing of small fixings | Blue Box Asia in Selangor supplies sets per piece or in bulk with fast quotation. |
Technical Documentation & Order
Send us the product you plan to fix, the base thickness and the surface type, and we will recommend the right coach screw with nylon plug length. Specifications above are for reference; contact us for datasheets.
| ORDER YOUR COACH SCREW WITH NYLON PLUG
Website: www.safety-bbasb.com | Request a quotation for any size or bulk quantity |
| ESTIMATED PACKAGING (FOR SHIPPING)
Estimated packed box per 100 sets: approx. 25 × 15 × 12 cm (L × W × H). Estimated packed weight per 100 sets: approx. 1.8 kg (M10×75) to 3.3 kg (M10×120), including packaging. |
Why Choose Blue Box Asia
- Local Selangor supplier with fast quotation
- Practical, low-cost fixing accessories for safety products
- Sizes matched to common rubber humps and bollards
- Project and bulk quantities supported
OEM & Bulk Supply
OEM packing, bulk quantities and custom lengths can be arranged for contractors, distributors and project buyers. Contact us with your requirements.
Company Information
Blue Box Asia Sdn Bhd | Malaysian safety products and installation services | www.safety-bbasb.com
Disclaimer
Weights and dimensions are nominal and may vary slightly. Confirm suitability for your surface and load before installation. Installation should follow site safety requirements.
