PVC Curtain Strip
Product Overview

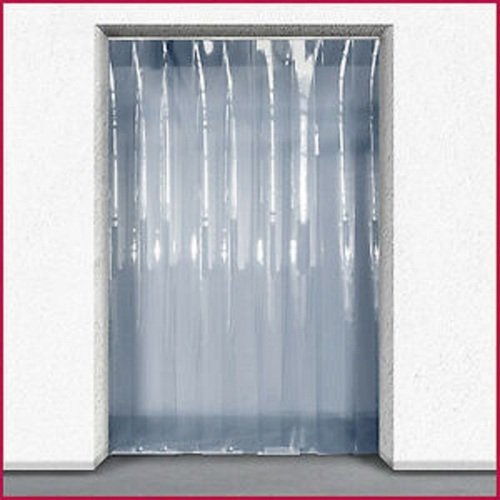

The BlueBox PVC curtain strip kit (model B01-00650) is built for a 1.2 metre by 2100mm doorway. It has eight clear cadmium free PVC strips, each 2mm thick and 200mm wide, hung from a 1.2 metre rail. The strips work as an external or internal thermal partition, holding cold or warm air in while letting people and forklifts pass through. The material is rated from -20 C to +40 C, so it suits cold rooms, chillers and warehouse doorways.
This kit complements our workplace safety systems and infrastructure protection ranges. For door and building protection see access control and bollards, and for floor and edge protection see anti-slip mats and floor safety. For larger or non-standard openings, ask about custom safety projects. Browse the full catalogue at the Blue Box Asia homepage.
Keeping cold rooms and warehouses well controlled supports safe working conditions. Refer to DOSH Malaysia for occupational safety guidance on working environments and temperature control, and the WHO road traffic injuries fact sheet for the wider role of clear, visible doorway and traffic routes in preventing accidents.
Product Specifications
| Product | PVC curtain strip kit, clear |
| Model | B01-00650 |
| Brand | BlueBox |
| Strips | 8 pcs |
| Strip size | 2mm thick x 200mm wide x 2100mm (210cm) long |

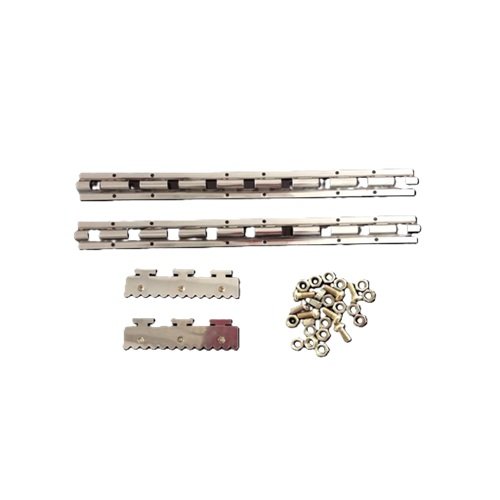

| Rail | 1 pc, 1.2 metre PVC curtain rail |
| Door size | 1.2m x 2100mm |
| Material | Cadmium free PVC |
| Colour | Clear |
| Temperature range | -20 C to +40 C |
| Application | External and internal thermal partition |
| Weight | Approx. 8 kg per kit (estimate) |
PRO Tips
| PRO TIPS FOR YOUR PVC CURTAIN STRIP
1. Measure the door width and height before ordering to confirm the 1.2m by 2100mm fit. 2. Fix the rail level and firmly above the door frame. 3. Overlap the strips so they meet with no gaps, and hang them evenly along the rail. 4. Trim the bottom of the strips so they sit just above the floor for free movement. 5. Wipe the strips with mild soap and water and keep them clear of oil and debris. 6. Replace strips that are torn, brittle or heavily cut. 7. Keep spare strips for quick repairs. |
Applications
| Cold rooms & chillers | Holding cold air in at cold room and chiller doorways |
| Warehouses & factories | Thermal partitions between temperature zones and busy doorways |
| Food & processing | Internal and external thermal partitions in food production areas |
Features & Benefits
| Feature | Benefit |
|---|---|
| 8 clear PVC strips | Full door coverage with overlap |
| 2mm thick, 200mm wide | Sturdy strips that stand up to daily use |
| 1.2m rail included | Everything needed for a standard door |
| Cadmium free PVC | Safer material for food and cold storage |
| -20 C to +40 C rating | Suits cold rooms and warehouses |
| Thermal partition use | Keeps air apart at internal and external doors |
Frequently Asked Questions
- What does the BlueBox PVC curtain strip kit include?
The kit includes 8 clear PVC strips, each 2mm thick, 200mm wide and 2100mm (210cm) long, plus one 1.2 metre PVC curtain rail.
- What size door is it for?
It is designed for a door of 1.2 metres wide by 2100mm high.
- What is the strip made of?
The strips are made from cadmium free PVC in clear colour.
- What temperature range can it handle?
It is rated from -20 C to +40 C, suitable for cold rooms, chillers, freezers and most warehouse doorways.
- What is it used for?
It is used as an external or internal thermal partition, keeping cold or warm air in while allowing people and forklifts to pass through.
- How do I fix the rail?

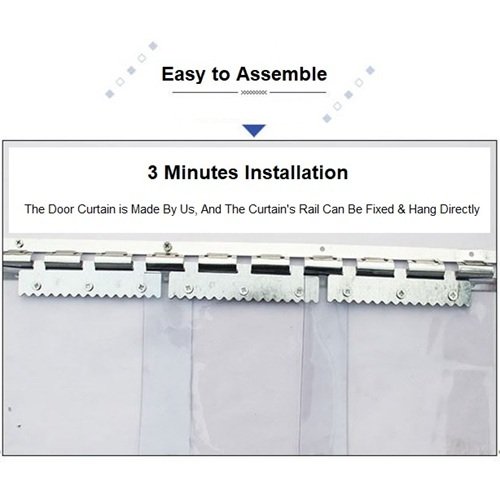

Fix the 1.2 metre rail above the door frame using suitable fixings for your wall or frame. Hang the strips along the rail and check they overlap.
- Can it be cut to a different door size?
Yes. The strips can be trimmed to suit a different door height or width. Contact us if you need a different kit size.
- Do you deliver PVC curtain strip kits across Malaysia?
Yes. Blue Box Asia is based in Selangor and supplies single kits or bulk orders across Malaysia. Contact us for a quotation.
Customer Pain Points vs Solutions
| Pain point | Our solution |
|---|---|
| Cold air escapes every time a door opens | Clear PVC strips close the gap and reduce air loss at the doorway. |
| Forklifts cannot pass solid doors quickly | Strips part easily for forklifts and people to pass through. |
| Cheap strips crack or yellow in cold rooms | Cadmium free PVC rated down to -20 C holds up in cold storage. |
| Rooms need separating without full doors | An internal strip curtain creates a thermal partition at low cost. |
| Need reliable local supply for cold room and warehouse fit-outs | Blue Box Asia in Selangor supplies single kits or bulk orders with fast quotation. |
Technical Documentation & Order
Tell us your door size and use (cold room, warehouse or partition), and we will confirm the right kit and any extra strips. Specifications are for reference; contact us for datasheets.
| ORDER YOUR PVC CURTAIN STRIP KIT
Website: www.safety-bbasb.com | Request a quotation for single kits or bulk orders |
| ESTIMATED PACKAGING (FOR SHIPPING)
Estimated packed box, 1 kit: approx. 215 x 25 x 15 cm (L x W x H); packed weight approx. 9 kg. Estimated carton of 5 kits: approx. 215 x 55 x 40 cm; packed weight approx. 46 kg. |
Why Choose Blue Box Asia
- Local Selangor supplier with fast quotation
- Complete kit with rail included
- Cadmium free PVC rated for cold rooms
- Single kit and bulk warehouse quantities supported
OEM & Bulk Supply
Bulk quantities, custom strip lengths and project supply can be arranged for cold room builders, warehouses and food factories. Contact us with your requirement.
Company Information
Blue Box Asia Sdn Bhd | Malaysian safety products and installation services | www.safety-bbasb.com
Disclaimer
Weights and dimensions are nominal and may vary slightly. Strip curtains reduce air exchange but do not form an airtight seal. Fixings are not included unless stated.
