Double Decker Bicycle Rack Malaysia
Product Overview

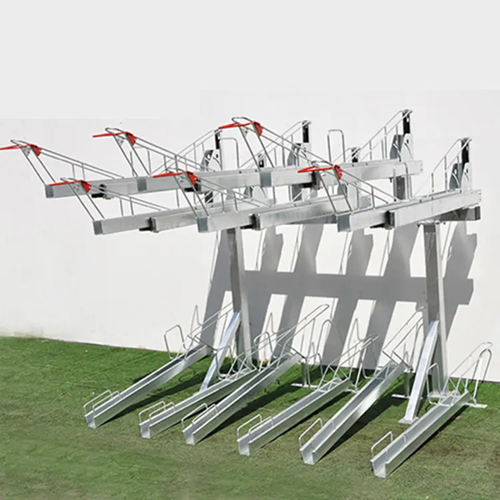

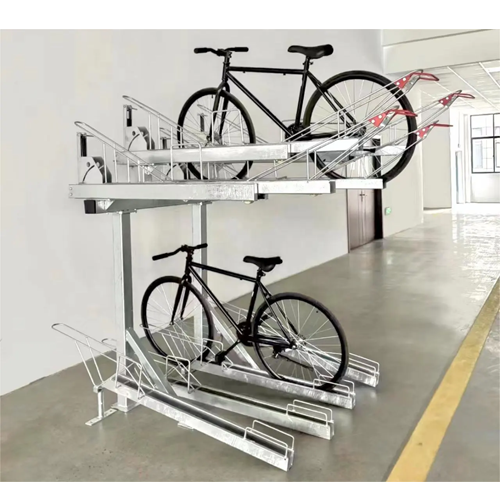

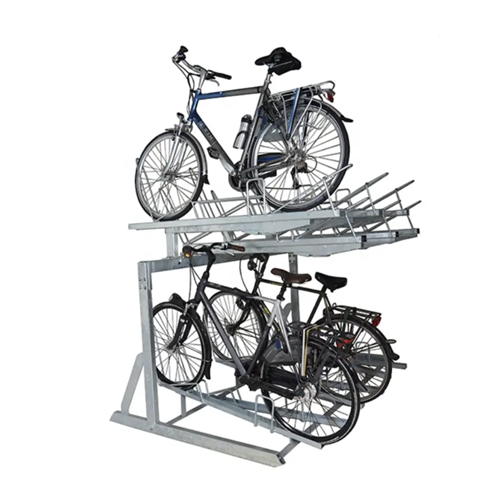

The BBIM BBIM-00080-5 is a 2-tier double decker bicycle rack engineered to maximise bicycle parking capacity within a compact floor footprint — a critical need for Malaysian apartments, condominiums, and mixed-use developments where ground-floor storage space is limited. With 5 slots on the top tier and 5 slots on the bottom tier, this single unit accommodates 10 bicycles, effectively doubling storage density compared to conventional single-tier racks.
Available through safety-bbasb.com — Malaysia’s specialist supplier of parking and infrastructure safety systems — this rack measures 200cm (L) x 60cm (W) x 150cm (H) and weighs approximately 50-60kg. Constructed from galvanised-coated steel, the frame resists corrosion in Malaysia’s humid climate, making it well suited to semi-outdoor basement parking, covered courtyards, and open-air bicycle storage bays.
Well-organised bicycle parking infrastructure supports sustainable urban mobility goals and reduces informal, obstructive bicycle parking in common corridors and fire escape routes — a safety consideration overseen locally by property management and, for workplace settings, by DOSH (Department of Occupational Safety and Health) under general workplace access and egress requirements. The World Health Organization has also highlighted cycling infrastructure as part of a broader strategy to reduce road traffic injury by encouraging safer, well-managed non-motorised transport options.
This bicycle rack complements our broader Parking Safety Systems range. For a complete facility solution, pair with bollards and access control to secure the storage area, convex mirrors and visual safety at basement ramp entries, and workplace safety products such as corner guards to protect structural columns near the parking bay.
The 2-tier design uses a raised upper channel accessed via an inclined guide rail, allowing users to roll bicycles up to the top slot without needing to lift the full weight of the bicycle. This ergonomic feature makes the double decker system practical for daily use by residents of varying strength and age, while still delivering the space efficiency property managers need in high-density developments.
Product Specifications
| PRODUCT SPECIFICATIONS | |
| Brand | BBIM |
| Model Number | BBIM-00080-5 |
| Product Type | 2-Tier Double Decker Bicycle Rack |
| Material | Galvanised-Coated Steel |
| Colour / Finish | Galvanised Silver |
| Overall Dimensions | 200cm (L) x 60cm (W) x 150cm (H) |
| Capacity | 10 Bicycles (5 Top Tier + 5 Bottom Tier) |
| Approximate Weight | 50-60 kg / Unit |
| Configuration | 2-Tier (Double Decker) with Inclined Guide Rail for Top Tier |
| Mounting | Floor-fixed via base frame (anchor bolts not included) |
| Application | Apartments, condominiums, mixed-use developments, office bicycle parking |
| Corrosion Resistance | Good — galvanised coating suited to humid Malaysian climate and semi-outdoor use |
| Recommended Installation | Covered basement parking, courtyards, or covered outdoor bicycle bays |
| Standards Compliance | Designed in line with general workplace and residential access safety practices |
PRO Tips — Installation & Maintenance
PRO INSTALLATION & MAINTENANCE TIPS
|
Applications
Category 1 — Residential Properties
- Apartment and condominium basement bicycle storage
- Gated community common-area bicycle parking
- Serviced residence and co-living space bike storage
- Landed housing estate shared bicycle bays
Category 2 — Commercial & Office Properties
- Office building bicycle-to-work parking facilities
- Business park and tech campus cycling infrastructure
- Shopping mall staff and visitor bicycle parking
- Co-working space amenity bicycle storage
Category 3 — Institutional & Public Facilities
- University and college campus bicycle parking
- Public transport hub park-and-ride bicycle storage
- Community centre and public park bicycle bays
- School and educational institution bicycle storage
Features & Benefits
| FEATURE | BENEFIT |
| Galvanised-Coated Steel Frame | Excellent corrosion resistance for long-term durability in humid Malaysian climate and semi-outdoor parking bays |
| 2-Tier Double Decker Design | Doubles bicycle storage capacity within the same floor footprint compared to single-tier racks |
| 10-Bicycle Capacity (5+5) | Efficiently serves multiple residents or employees from a single compact unit |
| Inclined Guide Rail (Top Tier) | Allows bicycles to be rolled up to the top slot rather than lifted, reducing strain and injury risk for users |
| Compact 200cm x 60cm Footprint | Fits within standard basement parking bays and courtyard storage areas without excessive space demands |
| Bottom-Tier Wheel Channel Slots | Securely cradles the front wheel of each bicycle, keeping parked bikes upright and stable |
| Floor-Fixed Base Frame | Provides a stable, secure installation that resists tipping even under repeated daily loading and unloading |
| Suitable for Apartments & Offices | Versatile design serves residential condominiums, office buildings, and mixed-use developments alike |
Frequently Asked Questions (FAQ)
| Q1: How many bicycles does the BBIM-00080-5 rack hold? |
| A: This 2-tier double decker rack holds 10 bicycles in total — 5 slots on the top tier and 5 slots on the bottom tier — within a single 200cm x 60cm footprint. |
| Q2: How do users load bicycles onto the top tier? |
| A: The top tier is accessed via an inclined guide rail. Users roll the bicycle’s front wheel up the rail rather than lifting the full bicycle weight, making it manageable for most users. |
| Q3: What material is the rack made from and how does it handle Malaysia’s climate? |
| A: The rack is constructed from galvanised-coated steel, which provides strong corrosion resistance suited to Malaysia’s humid tropical climate, including semi-outdoor and covered basement installations. |
| Q4: What is the overall footprint of one rack unit? |
| A: Each unit measures 200cm (L) x 60cm (W) x 150cm (H) and weighs approximately 50-60kg, making it suitable for basement parking bays, courtyards, and covered bicycle storage areas. |
| Q5: Can multiple units be installed side by side? |
| A: Yes. Multiple BBIM-00080-5 units can be installed in a row. We recommend at least 60cm of clearance between adjacent units so users have enough room to manoeuvre bicycles without handlebar interference. |
| Q6: Is this rack suitable for outdoor installation? |
| A: The galvanised coating offers good weather resistance, but for best longevity we recommend installing under a covered area (basement, courtyard roof, or canopy) rather than in fully exposed outdoor conditions. |
| Q7: What kind of properties commonly use this rack? |
| A: This double decker rack is popular with apartment and condominium management, office buildings, and mixed-use developments seeking to maximise bicycle parking capacity without expanding the storage footprint. |
| Q8: Does installation require special tools or a contractor? |
| A: Installation involves anchoring the base frame to a level concrete floor using expansion bolts (M10 or M12 recommended). This is generally straightforward for a facilities team, though a contractor can be engaged for larger multi-unit installations. |
Customer Pain Points & BBIM Solutions
| CUSTOMER PAIN POINT | BBIM SOLUTION |
| Limited floor space for bicycle parking in apartments | The 2-tier design doubles capacity within the same footprint, storing 10 bicycles where a single-tier rack would only hold 5. |
| Bicycles cluttering corridors and fire escape routes | A dedicated, organised rack gives residents a clear, designated storage location, reducing informal parking that can obstruct common areas and emergency egress. |
| Difficulty lifting bicycles onto elevated storage | The inclined guide rail lets users roll bicycles up to the top tier rather than lifting the full weight, making the system accessible to a wider range of users. |
| Rust and corrosion on outdoor bicycle racks | Galvanised-coated steel construction resists corrosion far better than untreated steel, extending service life even in covered outdoor or basement environments. |
| Unstable racks that tip or wobble under load | The floor-fixed base frame anchors securely to concrete, providing a stable platform that resists tipping even with multiple bicycles loaded simultaneously. |
Technical Documentation & Order CTA
Included Components
- 1x 2-tier double decker bicycle rack frame — 200cm(L) x 60cm(W) x 150cm(H)
- 5x top-tier bicycle slots with inclined guide rail
- 5x bottom-tier wheel channel slots
- Galvanised-coated steel construction throughout
Not Included
- Floor anchor bolts (M10 or M12 expansion anchors recommended)
- Bicycle locks or cable security accessories
Packaging & Logistics
- Shipped semi-knocked-down (SKD) with assembly hardware included
- Standard pallet quantity: 4 units per pallet
- CBM: approximately 0.6 m3/unit
- Lead time: 10-18 working days (standard order); 25-35 days (OEM/custom capacity configuration)
| READY TO ORDER?
Contact our team for bulk pricing, multi-unit layouts, and installation support. Visit: www.safety-bbasb.com Email: sales@safety-bbasb.com | WhatsApp or Call for fastest response |
Why Choose BBIM?
BBIM is Malaysia’s trusted supplier of parking, workplace, and infrastructure safety systems, distributed through safety-bbasb.com. Our products are sourced from ISO-certified manufacturers and undergo rigorous quality control inspection before dispatch. We offer:
- OEM / private label manufacturing for custom rack capacities and configurations
- Competitive ex-stock and bulk-order pricing across Malaysia
- Technical support and site layout assistance for multi-unit installations
- Nationwide delivery across Peninsular Malaysia and East Malaysia
- Full product range: bicycle parking, bollards, convex mirrors, workplace safety, infrastructure protection
Disclaimer
Product specifications, dimensions, weights and availability are subject to change without notice. All images are for illustration purposes only. Actual product may differ slightly from images shown. BBIM Safety Products makes no warranty, express or implied, regarding suitability for any specific application or load capacity. Buyers are advised to verify installation surface suitability and conduct a site-specific assessment prior to procurement. Pricing is subject to confirmation at point of order.
