Heavy Duty Rubber Dock Bumper
Product Overview

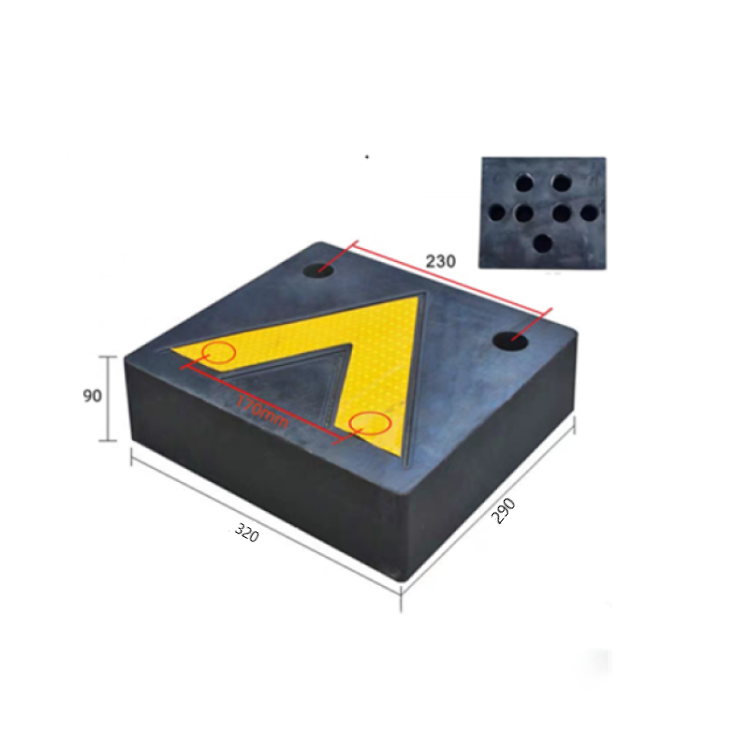

The BBIM heavy duty rubber dock bumper (model P03-00022) is a solid rectangular rubber block measuring approximately 320mm (L) x 290mm (W) x 90mm (H), built to absorb repeated impact from reversing trucks at loading bays. A reflective sticker on the face helps drivers judge bumper position clearly, even in low light, while 4 mounting holes sized for M12 to M16 bolts allow it to be bolted securely through to the dock wall. Its heavy duty rubber construction flexes under contact instead of cracking, protecting both the bumper and the structure behind it.
This dock bumper pairs naturally with our warehouse loading safety, infrastructure protection and parking safety solutions ranges. Combine it with our coach screw and nylon plug or heavier bolt-down fixings, and explore traffic safety equipment and access control and bollards for wider loading bay safety, or ask about custom safety projects for full dock fit-outs. Browse the full catalogue at the Blue Box Asia homepage.
Protecting workers and structures at loading bays is a core part of warehouse safety. Refer to DOSH Malaysia for occupational safety guidance on loading and unloading operations, and the WHO road traffic injuries fact sheet for the broader role of impact-absorbing safety measures around vehicle movement. A dock bumper is a simple, lasting way to reduce impact damage at your bay.
Product Specifications
| Product | Heavy duty rectangular rubber dock bumper |
| Model | P03-00022 |
| Brand | BBIM |
| Size | Approx. 320mm (L) x 290mm (W) x 90mm (H) |
| Shape | Rectangular |
| Material | Solid heavy duty rubber |
| Face detail | Reflective sticker |
| Mounting holes | 4 middle holes, sized for M12 to M16 bolts |
| Colour | Black rubber |
| Weight | Approx. 9-10 kg (estimate) |
| Use | Loading bay wall and dock edge impact protection |
PRO Tips
| PRO TIPS FOR YOUR DOCK BUMPER
1. Mark the 4 mounting hole positions on the wall before drilling. 2. Use M12 to M16 bolts sized to the dock bumper mounting holes and the wall material. 3. Mount the bumper at the height where trucks commonly make contact when reversing. 4. Tighten all 4 bolts evenly so the bumper sits flush against the wall. 5. Check the reflective sticker periodically and clean off dirt for visibility. 6. Inspect the rubber block regularly for deep cuts or separation from repeated impact. 7. Space multiple bumpers evenly across wide dock openings for full coverage. |
Applications

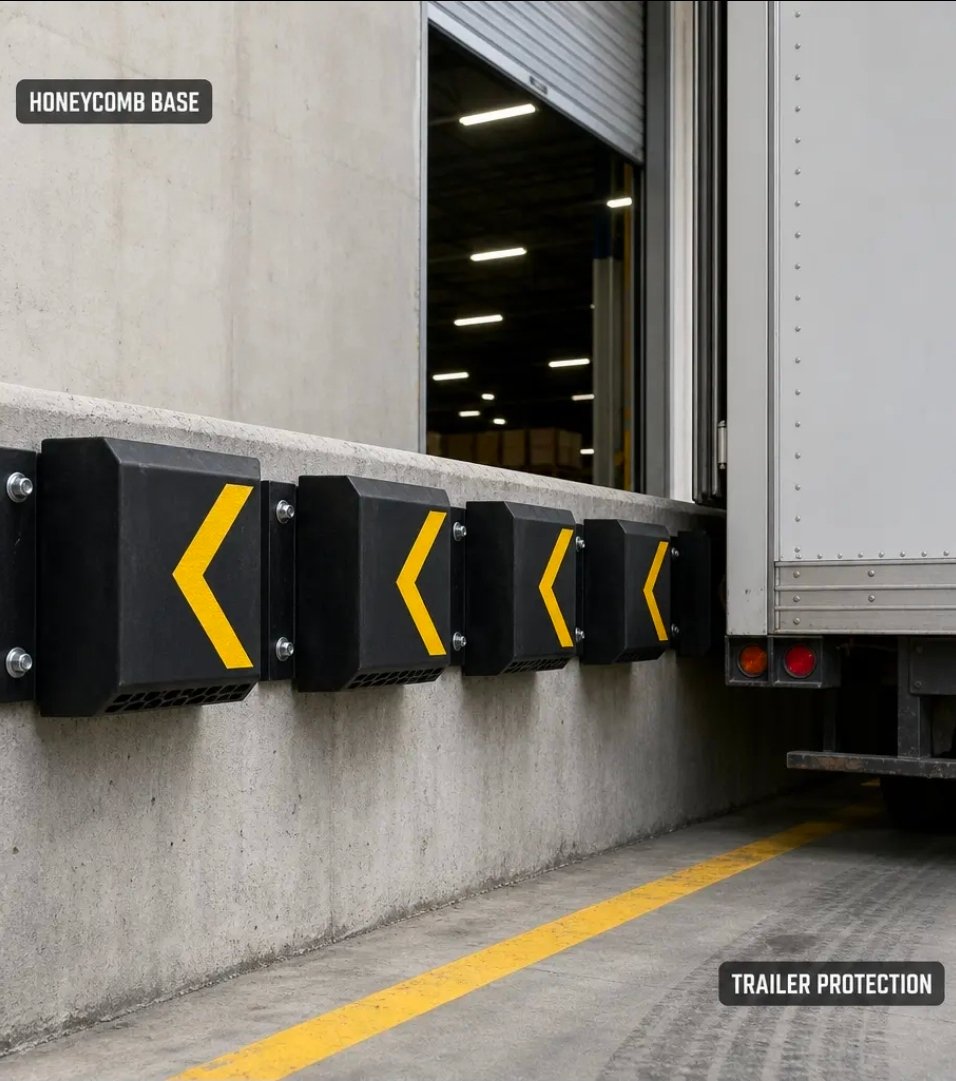

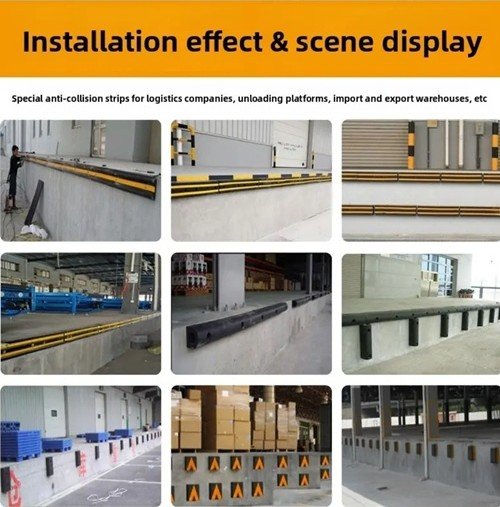

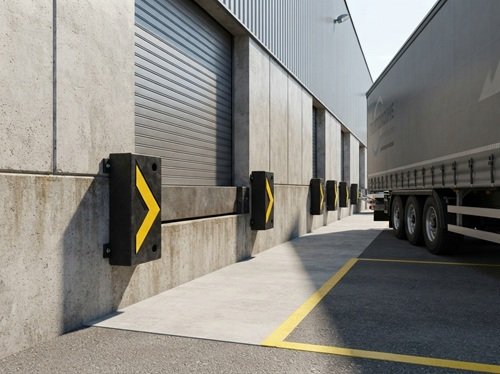

| Loading bay & dock | Protecting dock walls and edges from truck impact during reversing and docking |
| Warehouse & logistics | Standard fitment at warehouse, distribution center and logistics loading bays |
| Trailer guide points | Marking and cushioning contact points where trailers commonly make contact |
Features & Benefits
| Feature | Benefit |
|---|---|
| 320mm x 290mm x 90mm block | Solid coverage area to absorb truck impact |
| Reflective sticker face | Improves bumper visibility for reversing drivers |
| 4 mounting holes, M12-M16 | Straightforward bolt-through fixing to the dock wall |
| Solid rubber construction | Flexes and absorbs impact rather than cracking |
| Rectangular profile | Even, stable contact surface for trucks |
| Heavy duty rated | Built for repeated daily loading bay use |
Frequently Asked Questions
- What is a heavy duty rubber dock bumper?
A heavy duty rubber dock bumper is a solid rubber block bolted to a loading bay wall or dock edge to absorb impact from reversing trucks and protect the structure.
- What size is the BBIM dock bumper P03-00022?
It measures approximately 320mm (L) x 290mm (W) x 90mm (H), rectangular, with a reflective sticker on the face.
- How is the dock bumper mounted?
It has 4 middle mounting holes sized for M12 to M16 bolts, used to bolt the bumper directly through to the dock wall.
- What is the reflective sticker for?
The reflective sticker on the bumper face helps reversing truck drivers see the bumper position clearly, especially in low light.
- How much does the dock bumper weigh?
Each solid rubber bumper weighs approximately 9 to 10 kg, depending on manufacturing tolerance.
- Can the dock bumper be used on both walls and dock edges?
Yes. It is commonly bolted to loading bay walls, dock edges and trailer guide points wherever trucks reverse into position.
- Does the rubber bumper crack under repeated impact?
The solid rubber block is designed to absorb and flex under repeated truck contact rather than cracking like rigid materials.
- Do you deliver dock bumpers across Malaysia?
Yes. Blue Box Asia is based in Selangor and supplies single units or bulk warehouse orders across Malaysia. Contact us for a quotation.
Customer Pain Points vs Solutions
| Pain point | Our solution |
|---|---|
| Trucks damage loading bay walls on reversing | A solid rubber dock bumper absorbs impact and protects the wall structure. |
| Drivers misjudge bumper position in low light | The reflective sticker on the bumper face improves visibility when reversing. |
| Rigid bumpers crack and need frequent replacement | The rubber block flexes under impact, extending its working life. |
| Unsure which bolts fit the mounting holes | 4 mounting holes sized for M12 to M16 bolts make fixing straightforward. |
| Need reliable local supply for warehouse and logistics sites | Blue Box Asia in Selangor supplies single units or bulk orders with fast quotation. |
Technical Documentation & Order
Tell us the number of loading bays and bumpers needed, and we will confirm quantities and suitable bolt sizing. Specifications are for reference; contact us for datasheets.
| ORDER YOUR DOCK BUMPER
Website: www.safety-bbasb.com | Request a quotation for single units or bulk warehouse orders |
| ESTIMATED PACKAGING (FOR SHIPPING)
Estimated packed box, 1 unit: approx. 34 x 31 x 11 cm (L x W x H); packed weight approx. 9.5 kg. Estimated carton of 4 units: approx. 34 x 62 x 22 cm; packed weight approx. 39 kg. |
Why Choose Blue Box Asia
- Local Selangor supplier with fast quotation
- Own BBIM brand for consistent quality and supply
- Heavy duty rubber built for daily loading bay impact
- Single unit and bulk warehouse quantities supported
OEM & Bulk Supply
OEM branding, bulk quantities and project supply can be arranged for warehouse operators, logistics companies and contractors. Contact us with your requirement.
Company Information
Blue Box Asia Sdn Bhd | Malaysian safety products and installation services | www.safety-bbasb.com
Disclaimer
Weights and dimensions are nominal and may vary slightly. Confirm wall material and bolt length suitability before installation; mounting hardware is not included unless stated.
