Indoor Convex Mirror Malaysia

---

Product Overview

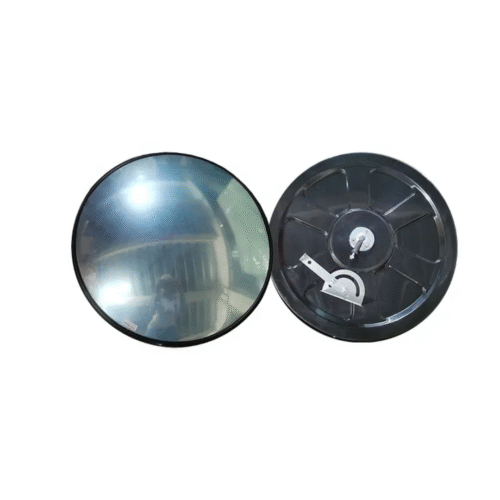

The BBIM BBIM-00044 is a 24-inch (600mm) indoor convex mirror designed to eliminate blind spots in retail stores, offices, warehouses, and corridors across Malaysia. Featuring a durable black polycarbonate frame and dome, this mirror is supplied without a back cap and complete with an indoor wall-mounting bracket, making it a lightweight, ready-to-install solution purpose-built for indoor environments rather than fully exposed outdoor use.

Available through safety-bbasb.com — Malaysia’s specialist supplier of visual safety solutions — this mirror weighs approximately 0.5-1kg, making it easy for a single person to mount using the supplied indoor bracket. Polycarbonate construction offers excellent impact resistance compared to glass, an important consideration in busy indoor spaces such as retail aisles and warehouse corridors where accidental contact is more likely.

Indoor convex mirrors of this type are widely used to support workplace safety and loss-prevention objectives. Under DOSH (Department of Occupational Safety and Health) guidelines, employers are encouraged to implement practical, low-cost engineering controls — such as visibility aids at blind corners — to reduce internal collision and safety risks. The World Health Organization has similarly highlighted that improving visibility at points of restricted sightline is one of the simplest and most effective ways to reduce preventable collisions, a principle equally applicable to indoor pedestrian and trolley traffic as to public roads.

This indoor mirror complements our broader Convex Mirrors & Visual Safety range. For outdoor blind corners, consider our quarter spherical mirror variants instead; for facilities needing both indoor and outdoor coverage, pair this mirror with workplace safety products such as corner guards, or bollards and access control to manage vehicle and trolley access near loading and storage areas.

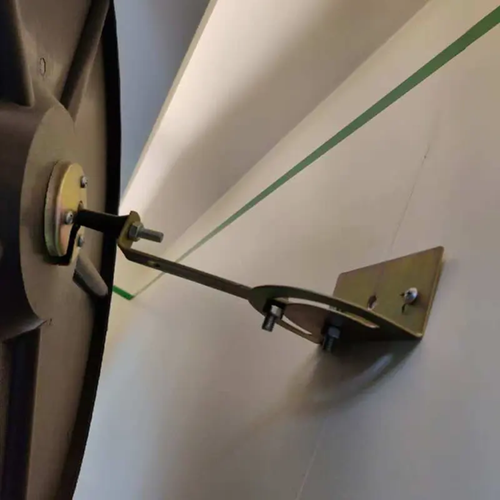

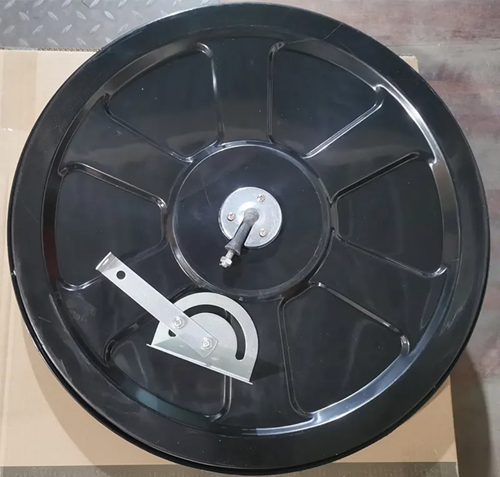

The absence of a back cap keeps this unit lightweight and cost-effective for indoor use, where the mirror is protected from rain and direct weather exposure. The included wall bracket allows tilt adjustment, letting staff fine-tune the viewing angle to suit specific aisle, corridor, or corner layouts after installation.

Product Specifications

PRODUCT SPECIFICATIONS
Brand	BBIM
Model Number	BBIM-00044
Product Type	Indoor Convex Mirror with Wall Bracket
Material	Polycarbonate Mirror Dome, Black Polycarbonate Frame
Diameter	24 inch (600mm)
Back Cap	Without Back Cap (indoor use only)
Mounting	Complete with (C/W) Indoor Wall-Mounted Bracket
Approximate Weight	0.5-1 kg / Unit
Colour / Finish	Black Frame with Silver-Reflective Polycarbonate Dome
Application	Retail stores, offices, warehouses, corridors, indoor blind corners
Impact Resistance	Good — polycarbonate is shatter-resistant, safer than glass in high-traffic indoor areas
Indoor/Outdoor Use	Indoor only — not recommended for direct outdoor weather exposure due to absence of back cap
Standards Compliance	Suitable for DOSH Malaysia workplace visibility and safety guidelines

PRO Tips — Installation & Maintenance

PRO INSTALLATION & MAINTENANCE TIPS Mount the mirror at a height of 2.1m to 2.4m in retail aisles and corridors — high enough to clear foot traffic but low enough to remain within comfortable eye-level viewing range. Use the tilt-adjustable wall bracket to angle the mirror slightly downward, ensuring staff and customers at normal standing height can see the reflected area without straining upward. Since this mirror has no back cap, install it strictly indoors — avoid locations near open loading bay doors, uncovered walkways, or any area exposed to direct rain. Clean the polycarbonate dome with a soft microfiber cloth and mild soap solution — avoid ammonia-based glass cleaners, which can cause polycarbonate to cloud or craze over time. For retail loss-prevention applications, position the mirror to cover till points, stockroom entrances, or aisle ends where staff sightlines are most restricted. Check the wall bracket fixing points periodically, especially in high-footfall areas, as accidental bumps from trolleys or stock carts can gradually loosen wall anchors. In warehouse or office corridor settings, combine this mirror with adequate ambient lighting — polycarbonate mirrors reflect available light but cannot compensate for poorly lit corners.

Applications

Category 1 — Retail & Commercial Spaces

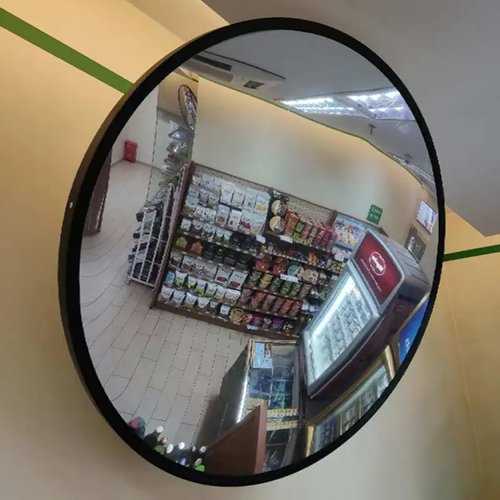

• Retail store aisle corners and blind-spot loss prevention
• Supermarket and convenience store checkout area monitoring
• Shopping mall corridor and escalator blind-spot coverage
• Pharmacy and specialty store stockroom entrance visibility

Category 2 — Office & Institutional Buildings

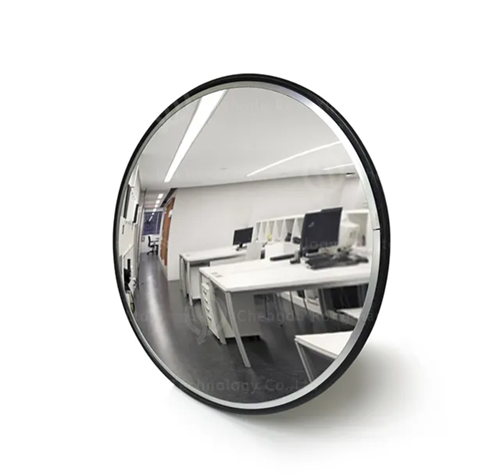

• Office corridor and stairwell blind corner visibility
• Reception area and lobby wide-angle monitoring
• School and institutional building hallway junctions
• Hospital and clinic corridor blind-spot coverage

Category 3 — Warehouse & Industrial Interiors

• Warehouse office and administrative corridor junctions
• Indoor loading dock office blind-spot monitoring
• Factory floor administrative area corner visibility
• Indoor storage room and stockroom entrance safety

Features & Benefits

FEATURE	BENEFIT
Polycarbonate Dome Construction	Shatter-resistant and lightweight compared to glass — safer for busy indoor retail and warehouse environments
Black Frame Design	Blends discreetly with modern indoor ceiling and wall finishes without appearing overly industrial
24-Inch (600mm) Diameter	Wide-angle coverage suitable for aisle corners, corridor junctions, and small blind spots
Complete with Wall Bracket	Ready-to-install package — no need to source a separate mounting bracket
No Back Cap — Lightweight Build	Keeps unit weight to just 0.5-1kg, simplifying installation and reducing wall-fixing load requirements
Tilt-Adjustable Mounting	Allows staff to fine-tune the viewing angle after installation to suit the specific corner or aisle layout
Indoor-Optimised Design	Purpose-built for retail, office, and warehouse interiors rather than compromising on outdoor weatherproofing
Cost-Effective Visibility Solution	Lower-cost alternative to outdoor-rated mirrors for facilities that only need indoor blind-spot coverage

Frequently Asked Questions (FAQ)

Q1: Why does this mirror not have a back cap?

A: The BBIM-00044 is designed specifically for indoor use, where protection from rain and weather is unnecessary. Omitting the back cap keeps the unit lighter and more cost-effective without compromising performance indoors.

Q2: Can this mirror be installed outdoors?

A: No, we do not recommend outdoor installation for this model since it lacks a back cap. For outdoor blind corners, please choose one of BBIM’s outdoor-rated quarter spherical convex mirrors instead.

Q3: Does the mirror come with a mounting bracket?

A: Yes, the BBIM-00044 is supplied complete with (C/W) an indoor wall-mounted bracket, so no separate bracket purchase is needed. The bracket allows tilt adjustment for fine-tuning the viewing angle.

Q4: What is the diameter of this convex mirror?

A: This mirror has a 24-inch (600mm) diameter, providing wide-angle coverage suitable for retail aisle corners, corridor junctions, and warehouse office blind spots.

Q5: What material is the mirror made from?

A: The mirror dome and frame are made from polycarbonate, a shatter-resistant plastic that is significantly safer than glass in busy indoor environments where accidental contact is more likely.

Q6: How much does this mirror weigh?

A: The unit weighs approximately 0.5-1kg, making it very easy for a single person to install using the supplied wall bracket without needing additional support.

Q7: What is the recommended installation height?

A: We recommend mounting at 2.1m to 2.4m in retail aisles and corridors — high enough to clear foot traffic while remaining within comfortable eye-level viewing range for most users.

Q8: How do I clean the polycarbonate mirror surface?

A: Use a soft microfiber cloth with a mild soap solution. Avoid ammonia-based glass cleaners, as these can cause the polycarbonate surface to cloud or develop fine surface cracks (crazing) over time.

Customer Pain Points & BBIM Solutions

CUSTOMER PAIN POINT	BBIM SOLUTION
Blind corners in retail aisles causing missed shoplifting incidents	The 24-inch wide-angle mirror gives staff clear visibility around aisle corners and stockroom entrances, supporting loss-prevention efforts.
Heavy, breakable glass mirrors risky in busy indoor spaces	Polycarbonate construction is shatter-resistant and significantly lighter than glass, reducing injury risk if accidentally struck by trolleys or stock carts.
Paying extra for outdoor-rated features not needed indoors	This indoor-specific model omits the back cap required for outdoor weatherproofing, keeping cost and weight down for purely indoor applications.
Difficulty finding a compatible mounting bracket separately	The mirror ships complete with an indoor wall-mounting bracket, removing the need to source and match a separate bracket.
Fixed mirror angle that doesn’t suit the installation corner	The tilt-adjustable wall bracket allows staff to fine-tune the viewing angle on-site to match the specific aisle or corridor layout.

Technical Documentation & Order CTA

Included Components

• 1x 24-inch (600mm) polycarbonate convex mirror dome, black frame
• 1x indoor wall-mounting bracket (tilt-adjustable)
• Mounting screws for standard indoor wall/ceiling fixing

Not Included

• Back cap (this model is supplied without one — indoor use only)
• Heavy-duty anchors for masonry or concrete (standard drywall screws included)

Packaging & Logistics

• Individually boxed with foam protective packaging
• Standard carton quantity: 10 units per carton
• CBM: approximately 0.03 m3/unit
• Lead time: 5-10 working days (standard order); 15-20 days (OEM/custom frame colour)

READY TO ORDER? Contact our team for bulk pricing, multi-unit fit-outs, and installation support. Visit: www.safety-bbasb.com Email: sales@safety-bbasb.com  |  WhatsApp or Call for fastest response

Why Choose BBIM?

BBIM is Malaysia’s trusted supplier of visual safety and workplace safety products, distributed through safety-bbasb.com. Our products are sourced from ISO-certified manufacturers and undergo rigorous quality control inspection before dispatch. We offer:

• OEM / private label manufacturing for custom sizes and frame colours
• Competitive ex-stock and bulk-order pricing across Malaysia
• Technical support and site layout assistance for retail and office fit-outs
• Nationwide delivery across Peninsular Malaysia and East Malaysia
• Full product range: indoor and outdoor convex mirrors, mounting poles, bollards, workplace safety

Disclaimer

Product specifications, dimensions, weights and availability are subject to change without notice. All images are for illustration purposes only. Actual product may differ slightly from images shown. BBIM Safety Products makes no warranty, express or implied, regarding suitability for any specific application. This model is designed for indoor use only and is not weatherproofed for outdoor exposure. Buyers are advised to verify installation surface suitability prior to procurement. Pricing is subject to confirmation at point of order.
