Rubber Corner Guard Malaysia Wall Corner Protector
Product Overview

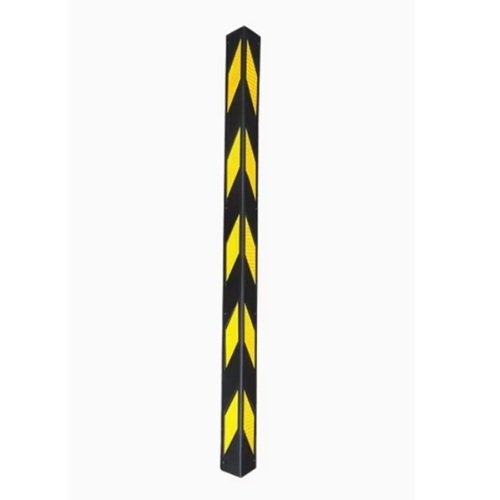

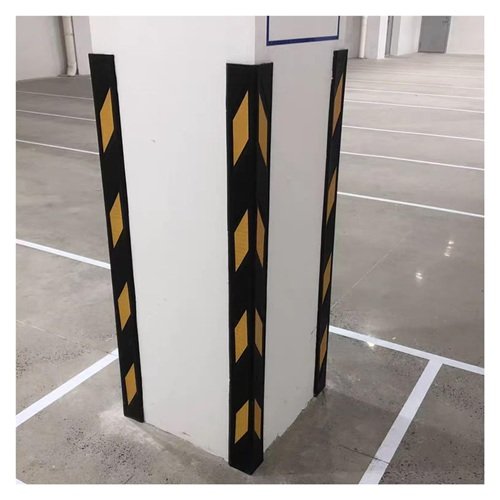

The BBSB BBIM-00010B-150 Rubber Corner Guard is a full-height traffic rubber corner protector engineered to shield building corners, structural pillars, warehouse columns, and exposed wall edges from equipment strikes, vehicle contact, and pedestrian impact across Malaysian commercial, industrial, and hospitality facilities. Measuring 1500 millimetres height × 100 millimetres width × 10 millimetres thickness and weighing approximately 2.5 kilograms per piece, this rubber corner guard provides comprehensive floor-to-above-trolley-height corner protection in a single unit — eliminating the stacking of multiple shorter guards required with standard 500mm or 1000mm products.
Supplied exclusively through Blue Box Asia Sdn Bhd, Malaysia’s trusted safety and facility protection equipment partner, the BBIM-00010B-150 forms part of our comprehensive anti-slip mats and floor safety range. The L-shaped rubber profile wraps precisely around 90-degree wall and pillar corners — with the 100mm face absorbing lateral impact forces from trolleys, pallet jacks, forklifts, and vehicle bumpers before they reach the structural surface beneath.
The 10mm rubber thickness provides meaningful impact absorption without creating a significant protrusion into walkways or vehicle lanes — an important design consideration for narrow warehouse aisles and car park bays where every centimetre of clearance matters. At 1500mm height, the guard covers the most vulnerable contact zone from ground level through trolley-push and forklift-fender height, consistent with DOSH Malaysia workplace injury prevention guidelines for equipment-dense environments.
For comprehensive facility corner and floor safety, pair the BBSB rubber corner guard with our parking safety solutions, wheel stoppers and truck chocks, flexible collision safety barriers, and convex mirrors for blind corner visibility to deliver a layered facility protection system.
Product Specifications
| Specification | Details |
| Brand | BBSB |
| Model No. | BBIM-00010B-150 |
| Product Name | Rubber Corner Guard — Traffic Rubber Corner Protector |
| Height | 1500 mm (1.5 metres) — full single-piece height |
| Width | 100 mm (per face of L-profile) |
| Thickness | 10 mm (rubber wall thickness) |
| Weight | Approximately 2.5 kg per piece |
| Profile Shape | L-shaped (90-degree angle) — fits standard square corners |
| Material | Traffic Rubber Compound — dense, durable, impact-absorbing |
| Colour | Black (standard traffic rubber) or custom on request |
| Surface Texture | Textured rubber finish — non-slip surface |
| UV Resistance | Yes — traffic rubber compound UV-stabilised for outdoor use |
| Oil Resistance | Resistant to automotive fluids, oils, and cleaning agents |
| Temperature Range | Suitable for Malaysia’s tropical climate — heat and humidity stable |
| Installation | Surface-mount — adhesive bonding or mechanical anchor bolts |
| Coverage | Single piece covers 1500mm height; stack vertically for full-column coverage |
| Compliance | DOSH Malaysia workplace safety; JKR facility protection standards |
| Lifespan | 5+ years in typical warehouse and facility use |
| Supplier | Blue Box Asia Sdn Bhd (safety-bbasb.com), Selangor, Malaysia |
PRO Tips
| 💡 PRO TIPS — Rubber Corner Guard 1500mm × 100mm × 10mm BBIM-00010B-150
1. Before installing, clean the corner surface thoroughly — dust, oil, or paint flakes prevent adhesive from bonding fully. A clean, dry concrete or painted steel surface achieves maximum adhesion lifespan in Malaysia’s humid conditions. 2. For high-impact zones (forklift aisles, car park columns, loading dock pillars), use both adhesive bonding and mechanical anchor screws (Buy separately)— dual fixing withstands repeated heavy contact that adhesive-only installations cannot sustain long-term. 3. Align the corner guard vertically using a spirit level before pressing or fastening — crooked installation looks unprofessional and creates uneven impact distribution that can peel edges over time. 4. In facilities with pressure-wash cleaning routines, use waterproof construction adhesive rated for rubber-to-concrete bonding — standard adhesives dissolve under sustained water jet exposure common in food processing and wet markets. 5. For full-column protection on tall pillars (above 1500mm), install a second BBIM-00010B-150 unit directly above the first — ensure the join is tight and flush with no gap, which can trap debris and cause peeling. 6. In car parks with coloured floor lines, coordinate corner guard colour with the facility’s safety colour scheme — yellow guards signal active hazard zones; black guards blend with neutral or premium facility aesthetics. 7. Inspect adhesive bond integrity quarterly in high-humidity Malaysian environments — tropical humidity can gradually soften some adhesive types. Reapply fresh adhesive at any lifting edges before full detachment occurs. |
Applications
| 🏭 Warehouse & Industrial
Warehouse pillar corners, forklift aisle columns, storage rack ends, loading dock edges, factory wall corners |
🅿 Parking & Commercial
Car park structural columns, multi-storey pillars, basement level corners, retail back-of-house, mall service corridors |
🏥 Institutional & Hospitality
Hospital corridors, hotel service areas, school hallways, government buildings, airport terminals, kitchen corners |
Features & Benefits
| Feature | Benefit |
| 1500mm Full-Height Single Piece | Eliminates stacking of multiple shorter units — one piece covers the entire critical impact zone from floor to above trolley height. |
| L-Profile 90° Corner Fit | Precisely wraps square building corners and structural pillars — no gaps, no exposed edges at the corner apex. |
| 100mm Face Width | Wide rubber face distributes impact energy over a broad surface — prevents point-load damage on concrete or plaster corners. |
| 10mm Thickness | Meaningful impact absorption without significant aisle protrusion — critical for narrow warehouse aisles and tight car park bays. |
| Traffic Rubber Compound | Dense, durable rubber engineered for repeated mechanical impact — maintains shape and protection for 10+ years. |
| UV & Oil Resistant | Stable under Malaysia’s tropical sun and automotive fluid exposure — ideal for outdoor car parks and industrial environments. |
| Lightweight at 2.5 kg/pc | Easy single-person installation — no lifting equipment required for a 1500mm unit. |
| DOSH & Facility Safety Compliant | Meets Malaysian workplace injury prevention and facility safety guidelines for corner protection. |
Frequently Asked Questions (FAQ)
Q1: Why is 1500mm the preferred height for a corner guard?
A: 1500mm covers the critical impact zone from floor level through trolley-push height (approximately 900mm) and up to forklift mast contact level (approximately 1200–1500mm). A single 1500mm unit eliminates the need to stack two shorter guards and removes the vulnerability of a join gap at the most-impacted mid-height zone.
Q2: How is the BBIM-00010B-150 installed on a wall or pillar corner?
A: Two installation methods: (1) Adhesive bonding using construction-grade rubber-to-concrete adhesive — apply to both guard and cleaned surface, press firmly, allow 24-hour curing. (2) Mechanical anchor screws through pre-drilled holes in the rubber flange for high-impact areas. Dual fixing (adhesive + screws) is recommended for forklift zones.
Q3: What type of corners does the L-profile fit?
A: The L-profile is engineered for standard 90-degree square corners on concrete pillars, brick walls, and steel columns. It is not designed for acute (less than 90 degrees) or obtuse (greater than 90 degrees) corners — those require custom-profile guards.
Q4: Can multiple BBIM-00010B-150 units be stacked for full-column protection above 1500mm?
A: Yes. Install the first unit from floor level to 1500mm, then place a second unit directly above with the join tight and flush. Two units provide 3000mm (3-metre) coverage. Use consistent adhesive and anchor bolt fixing on all units.
Q5: Is the rubber corner guard suitable for outdoor car park columns exposed to rain?
A: Yes. The traffic rubber compound is UV-stabilised and water-resistant — suitable for outdoor car park pillars, covered basement car parks, and partially exposed facility corners in Malaysia’s tropical conditions.
Q6: Does Blue Box Asia supply corner guards in different heights or custom sizes?
A: Yes. Blue Box Asia stocks multiple corner guard heights. The BBIM-00010B-150 is the 1500mm variant. Contact our sales team for alternative heights, custom lengths, or colour options for your specific facility requirements.
Customer Pain Points vs Solutions
| ⚠ Pain Point | ✔ Our Solution |
| Exposed concrete and plaster corners crack, chip, and spall after repeated trolley and equipment strikes — requiring expensive plastering and repainting | BBIM-00010B-150 absorbs all equipment impact before it reaches the structural surface — preventing corner damage and eliminating repair cycles. |
| Standard 500mm or 1000mm corner guards leave exposed joins at mid-height — the most vulnerable impact zone for trolleys and forklifts | 1500mm single-piece unit eliminates joins in the critical impact zone — one continuous rubber surface from floor to above-forklift-fender height. |
| Plastic corner guards shatter and fragment under heavy equipment contact — creating sharp shards that injure workers and require immediate replacement | Dense traffic rubber compound flexes and absorbs impact without fracturing — maintains integrity under repeated heavy contact for 10+ years. |
| Adhesive-only corner guard installations fail in high-humidity Malaysian environments — corners detach and expose structural surfaces | BBIM-00010B-150 supports dual fixing (adhesive + mechanical anchor bolts) for permanent installation that survives tropical humidity and pressure washing. |
| Separate corner guards for each section of a facility create procurement complexity, inconsistent coverage, and staff confusion | One standard product (BBIM-00010B-150) serves all corners in a facility — consistent specification, competitive bulk pricing, simplified procurement. |
Technical Documentation & Order
The BBSB BBIM-00010B-150 Rubber Corner Guard is engineered and supplied in accordance with the following Malaysian and international facility safety standards:
- DOSH Malaysia — Occupational Safety & Health Act 1994 (Act 514): Workplace injury prevention requirements for structural corner and column protection in equipment-dense environments
- JKR/PWD Malaysia — Facility Safety & Maintenance Guidelines: Corner protection device specifications for public and commercial facilities
- MS ISO 45001:2018 — Occupational Health & Safety Management Systems: Physical injury prevention infrastructure including corner and wall protection devices
- Australian/New Zealand Standard AS/NZS 4602: High-visibility safety and facility protection device colour and installation specifications (adopted in Malaysian industrial facilities)
| 📦 READY TO ORDER?
Contact Blue Box Asia Sdn Bhd for bulk facility orders, custom sizes & multi-height options 🌐 www.safety-bbasb.com | 📧 sales@safety-bbasb.com Model: BBIM-00010B-150 | Brand: BBSB | Fast Delivery — Selangor & Nationwide Malaysia |
Why Choose Blue Box Asia | OEM | Company Info
✅ Malaysia’s Facility Safety & Corner Protection Specialist
Blue Box Asia Sdn Bhd is the trusted partner for warehouses, car parks, hospitals, hotels, and commercial facilities across Malaysia — providing complete corner protection and facility impact prevention solutions.
✅ 1500mm Full-Height Advantage
Our 1500mm single-piece corner guard eliminates the mid-height join gap vulnerability of stacked shorter guards — one product, complete critical-zone coverage.
✅ Traffic Rubber Durability
We specialise in traffic-grade rubber products engineered for Malaysia’s tropical climate and heavy-equipment environments — not consumer-grade foam or plastic alternatives.
✅ Complete Facility Safety Ecosystem
From corner guards and anti-slip mats to wheel stoppers, bollards, and collision barriers — Blue Box Asia provides the full spectrum of facility and parking safety equipment.
✅ Bulk & Project Supply Capability
We supply facility-wide corner guard installations — from a handful of pillars to multi-hundred-unit commercial property projects with volume pricing and scheduled delivery.
| DISCLAIMER
Product specifications are subject to change without prior notice. Adhesive bonding performance varies by surface preparation quality and adhesive type — follow manufacturer’s instructions for rubber-to-surface bonding. For critical high-impact applications, use mechanical anchor fixing. Blue Box Asia Sdn Bhd makes no warranty beyond the manufacturer’s standard terms. |
