Description
Rubber speed hump Malaysia heavy duty truck
Product Overview
The BB BBIM-00072 Heavy-Duty Rubber Speed Hump is a modular traffic calming system engineered specifically for truck and heavy vehicle environments across Malaysian industrial facilities, logistics yards, warehouses, commercial parking areas, and road access points. The system consists of two interlocking components: the Middle Section (BBIM-00072) sold in pairs of black and yellow at 500mm × 500mm × 75mm, and the End Cap (BBIM-00072-EC) sold separately at 175mm × 400mm × 75mm — together forming a complete, professional-grade rubber speed hump system scalable to any road or lane width.
Supplied exclusively through Blue Box Asia Sdn Bhd, Malaysia’s trusted road and parking safety equipment partner, the BB BBIM-00072 forms part of our comprehensive speed humps and speed bumps range. At 75mm height, the hump is engineered specifically for heavy vehicles — tall enough to enforce a meaningful speed reduction to 10–15 km/h across truck and lorry operations, yet low enough to prevent underbody damage on properly loaded vehicles.
The modular design is the key commercial advantage: by combining multiple 500mm middle section pairs end-to-end, facilities can span any road width from a single 500mm pair (narrow lanes) to multi-metre industrial roads (adding pairs until full width is achieved). The BBIM-00072-EC end cap then attaches to both ends — creating a tapered approach ramp that prevents tire sidewall damage and provides a clean, professional edge finish that meets DOSH Malaysia workplace traffic management requirements.
The black and yellow colour scheme is the internationally recognised standard for traffic calming devices — providing maximum driver visibility and psychological speed reduction cues before the hump contact. For a comprehensive facility traffic management system, pair the BB rubber speed hump with our wheel stoppers and truck chocks, safety cones and bollards, convex mirrors for blind spot safety, and road studs and reflectors to create a comprehensive vehicle speed and access control system.
Product Specifications & Component Comparison
| Specification | Details |
| Brand | BB |
| System Name | Heavy-Duty Rubber Speed Hump — Modular Truck Speed Bump System |
| Material | Heavy-Duty Recycled Rubber Compound |
| Height | 75mm (both middle section and end cap) |
| Colour | Black & Yellow — internationally recognised traffic calming standard |
| Traffic Rating | Heavy-duty — engineered for trucks, lorries, forklifts, and heavy vehicles |
| Interlocking System | Bolt-together modular sections — scalable to any road width |
| Surface Anchoring | Through-bolt ground anchors (Available separately) |
| UV Resistance | Yes — UV-stabilised compound for outdoor tropical Malaysian use |
| Oil Resistance | Yes — recycled rubber resists fuel, oil, and automotive fluid contact |
| Temperature Range | Suitable for Malaysia’s year-round tropical outdoor temperatures |
| Compliance | JKR/PWD Malaysia, DOSH Malaysia workplace traffic calming standards |
| Lifespan | 5+ years in typical outdoor vehicle traffic use with minimal maintenance |
| Supplier | Blue Box Asia Sdn Bhd (safety-bbasb.com), Selangor, Malaysia |
Component Comparison: Middle Section vs End Cap
| Specification | Middle Section — BBIM-00072 | End Cap — BBIM-00072-EC |
| Model No. | BBIM-00072 | BBIM-00072-EC |
| Component | Middle Section (pair) | End Cap (sold separately) |

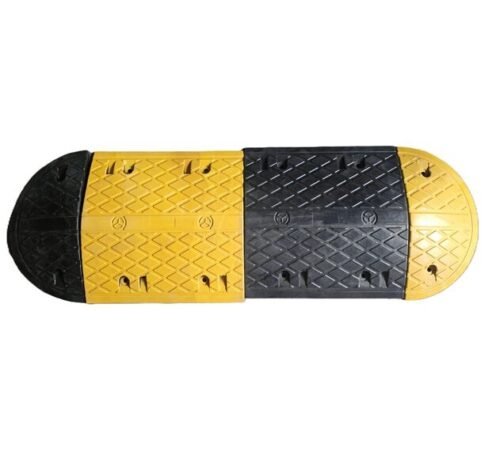

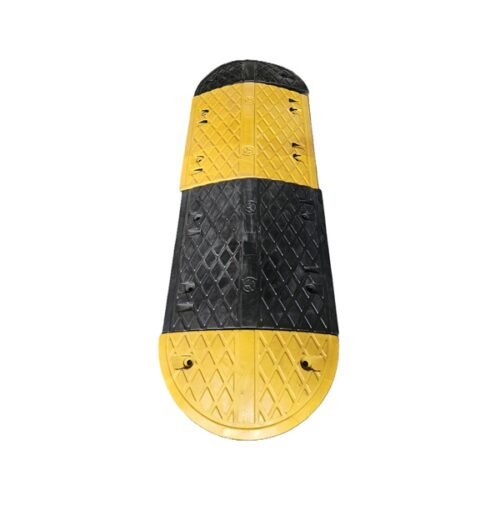

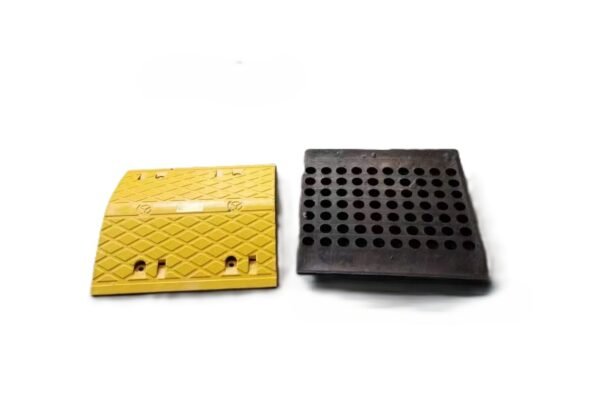

| Dimensions (L×W×H) | 500mm × 500mm × 75mm | 175mm × 500mm × 75mm |
| Colour | Black & Yellow (pair) | Black & Yellow (Pair) |
| Sold As | Pair (2 pieces per set) | Pair (2 pieces per set) |
| Purpose | Main road-spanning hump body | Tapered end finish / ramp |
| Interlocking | Yes — bolt together across road width | Yes — attaches to middle section ends |
| Application | Core traffic calming coverage | Clean edge finish & smooth approach ramp |
PRO Tips
| 💡 PRO TIPS — Heavy-Duty Rubber Speed Hump System BBIM-00072 & BBIM-00072-EC
1. Calculate road width in 500mm increments to determine the number of middle section pairs required — a 3-metre road needs six middle sections (three pairs), plus two end caps. Always order end caps (BBIM-00072-EC) as a separate line item. 2. Install speed humps at least 20–30 metres before facility hazard points (loading docks, pedestrian crossings, intersections) — this gives truck drivers sufficient braking distance at safe reduced speeds. 3. Use stainless steel anchor bolts for outdoor installations exposed to Malaysia’s rain and tropical humidity — standard galvanised hardware corrodes in 3–5 years, causing hump displacement and tyre snag hazards. 4. For indoor warehouse and factory floors, ensure the anchor bolt recesses are filled and levelled after installation — exposed bolt holes create wheel and trolley snagging hazards for forklifts and pallet jacks. 5. Position speed humps perpendicular to the direction of vehicle travel — diagonal humps create unequal axle loading that can damage truck suspension and cause vehicle instability. 6. Apply reflective road studs or road marking paint at approach sightlines before the hump — in low-light warehouse and night-shift conditions, drivers need advance visual warning beyond the yellow colour alone. 7. Inspect anchor bolts and hump sections quarterly for vertical displacement, cracking, or section separation — heavy trucks create significant cumulative impact fatigue. Replace sections showing more than 20% deformation for consistent speed control. |
Applications
| 🏭 Industrial & Logistics
Warehouse yards, loading dock approaches, forklift zones, factory internal roads, logistics hub access control |
🅿 Parking & Commercial
Shopping mall entry lanes, car park approaches, commercial property access roads, hotel delivery zones |
🏫 Institutional & Public
School zones, hospital access roads, government facilities, residential estate entry, university campus roads |
Features & Benefits
| Feature | Benefit |
| Heavy-Duty Truck Rating | 75mm height and dense recycled rubber engineered for trucks, lorries, and forklifts — not just passenger cars. |
| Modular Scalable System | Multiple 500mm middle pairs bolt together to span any road width — no cutting, custom ordering, or specialist installation. |
| End Cap for Professional Finish | BBIM-00072-EC tapers each end of the hump — preventing tyre sidewall damage and creating a clean, JKR-compliant edge. |
| Sold in Pairs — Black & Yellow | Each purchase supplies two interlocked black and yellow sections — maximising visibility and reducing per-unit cost. |
| Recycled Rubber Heavy-Duty Compound | Oil-resistant, UV-stable, weather-proof — maintains shape and effectiveness for 5+ years of heavy vehicle traffic. |
| Bolt-Down Ground Anchoring | Secure anchor bolts prevent hump displacement under repeated heavy vehicle impact — no creep, no rotation. |
| Black & Yellow High Visibility | Internationally recognised traffic calming colour scheme — maximum driver awareness at distance. |
| JKR & DOSH Compliance | Meets Malaysian road and workplace traffic calming standards for industrial and public applications. |
Frequently Asked Questions (FAQ)
Q1: How many middle section pairs (BBIM-00072) do I need for my road width?
A: Divide your road width by 500mm to determine the number of sections needed. For example, a 3-metre road requires six sections (three pairs). Always add two BBIM-00072-EC end caps per hump installation — one for each end.
Q2: Why are the middle sections sold in pairs of black and yellow rather than individually?
A: The alternating black and yellow pattern is the internationally recognised traffic calming colour standard. Selling in pairs ensures every installation has the correct colour alternation — improving driver visibility and meeting road safety guidelines.
Q3: Is the BBIM-00072-EC End Cap mandatory for every installation?
A: The end cap is not mandatory for function, but is strongly recommended — it provides the tapered approach ramp that prevents tyre sidewall contact damage and gives a professional, compliant finish. Most facilities and road engineers specify end caps as part of complete installations.
Q4: Can the speed hump system be removed and reinstalled at a different location?
A: Yes. The modular bolt-down design allows removal by unbolting the anchor hardware. Sections can then be relocated and reinstalled with new bolts. Some minor ground patching may be required at the original anchor points.
Q5: Is the 75mm height suitable for car parks with standard passenger vehicles only?
A: Yes — 75mm is effective for both passenger vehicles and heavy trucks. Passenger vehicles will travel at approximately 10–15 km/h over the hump comfortably. It is specifically rated for heavy vehicles making it the preferred choice for mixed-traffic facilities.
Q6: Does Blue Box Asia supply installation hardware and reflective road studs?
A: Yes. Anchor bolt hardware is available from Blue Box Asia. For advance warning visibility, pair with our road studs and reflectors range — consult our sales team for a complete traffic calming package quote.
Customer Pain Points vs Solutions
| ⚠ Pain Point | ✔ Our Solution |
| Light-duty plastic speed bumps collapse or crack under truck and lorry weight — providing no speed control for heavy vehicles | BB BBIM-00072 is specifically rated for trucks and heavy vehicles — heavy-duty rubber compound maintains shape and effectiveness indefinitely. |
| Fixed-width concrete speed humps cannot be customised to different road widths — requiring demolition and rebuilding for any changes | Modular BBIM-00072 middle pairs bolt together for any width — add or remove sections without demolition, specialist contractors, or downtime. |
| Speed humps without end caps create sharp edges that damage tyre sidewalls — creating punctures, blowouts, and vehicle damage liability | BBIM-00072-EC end caps provide a smooth tapered approach ramp — eliminating sharp edges and tyre damage on both entry and exit. |
| Concrete or asphalt speed humps are permanent — cannot be removed for heavy delivery vehicles or reconfigured for changed traffic flow | Rubber modular system bolts on and off — removable for special vehicle access, seasonal changes, or facility layout modifications. |
| Speed humps with poor visibility cause last-minute braking, vehicle damage, and pedestrian safety incidents | Standard black and yellow high-visibility colour and modular design ensure consistent driver recognition from approach distances. |
Technical Documentation & Order
The BB BBIM-00072 Heavy-Duty Rubber Speed Hump System is engineered and supplied in accordance with the following Malaysian and international traffic calming standards:
- JKR/PWD Malaysia — Arahan Teknik Jalan 2A/85: Road hump design specifications and height requirements for Malaysian public and private roads
- DOSH Malaysia — Occupational Safety & Health Act 1994 (Act 514): Workplace vehicle speed control and traffic management device requirements
- MS 1184 — Malaysian Standard for Road Humps: Dimensions, materials, and installation specifications for traffic calming devices
- WHO Road Traffic Injury Prevention: Speed management infrastructure guidelines including speed hump design for mixed-traffic environments
| 📦 READY TO ORDER?
Contact Blue Box Asia — Middle Section BBIM-00072 (pairs) + End Cap BBIM-00072-EC (sold separately) 🌐 www.safety-bbasb.com | 📧 sales@safety-bbasb.com Brand: BB | Black & Yellow | Fast Delivery — Selangor & Nationwide Malaysia |
Why Choose Blue Box Asia | OEM | Company Info
✅ Malaysia’s Traffic Calming & Speed Control Specialist
Blue Box Asia Sdn Bhd is the trusted partner for industrial facilities, logistics hubs, commercial properties, and institutional campuses across Malaysia — providing complete traffic calming and vehicle speed management solutions.
✅ Heavy-Vehicle Rated Products
We specialise in heavy-duty rubber traffic products engineered for Malaysian truck and lorry operations — not light-duty alternatives that fail under industrial vehicle loads.
✅ Modular System with Full Component Support
Both middle sections (BBIM-00072) and end caps (BBIM-00072-EC) are maintained in stock — enabling complete installations without component shortfalls.
✅ Complete Road Safety Ecosystem
From speed humps and wheel stoppers to bollards, convex mirrors, and road studs — Blue Box Asia covers the full spectrum of vehicle access control and traffic safety equipment.
✅ JKR, MS 1184 & DOSH Compliance
Our products meet Malaysian road hump standards and workplace traffic management guidelines — providing regulatory compliance confidence for facilities managers.
| DISCLAIMER
Product specifications are subject to change without prior notice. End cap (BBIM-00072-EC) is sold separately and must be ordered in addition to middle sections. Installation must comply with applicable JKR, DOSH, and local authority road and workplace safety requirements. Blue Box Asia Sdn Bhd makes no warranty beyond the manufacturer’s standard terms. For public road installations, consult JKR or relevant local authority for approval before installation. |
