Convex Mirror Mounting Pole Malaysia
Product Overview

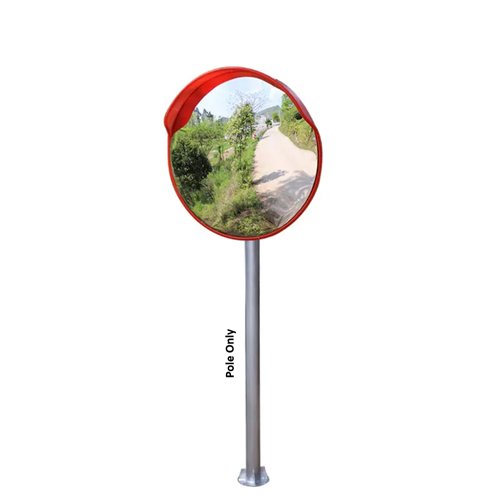

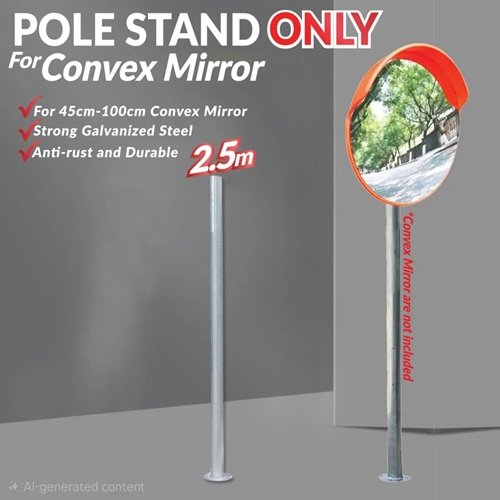

The BBIM BBIM-00014 is a galvanized steel convex mirror mounting pole — a ground-fixed column engineered to support convex mirrors, small signage boards, and billboard panels at the correct viewing or display height. Measuring 75mm in diameter and 2500mm (2.5m) in height, this pipe post provides a stable, corrosion-resistant column suited to Malaysian road junctions, warehouse yards, car parks, and commercial frontages where no existing wall or structure is available for mirror or signage mounting.
Available through safety-bbasb.com — Malaysia’s trusted supplier of visual safety and traffic infrastructure products — this mounting pole weighs approximately 5-7kg per unit. The galvanized coating provides strong resistance to rust and corrosion, making it well suited to fully outdoor installations exposed to Malaysia’s tropical rain and humidity, unlike PMMA acrylic mirror bodies which require covered mounting.
This pole is designed as a companion product to our Convex Mirrors & Visual Safety range, providing the correct elevated mounting solution at locations without a wall, column, or existing structure. Under DOSH (Department of Occupational Safety and Health) guidelines, ensuring visibility aids such as convex mirrors are mounted securely and at an appropriate height is part of maintaining safe vehicular and pedestrian traffic flow at Malaysian worksites. The World Health Organization similarly notes that visibility-enhancing infrastructure at road junctions is an effective, low-cost measure for reducing traffic-related injuries.
For a complete installation, pair this mounting pole with a convex mirror from our Convex Mirrors & Visual Safety range, and consider adding bollards and access control at the base of the pole to protect it from vehicle impact in high-traffic areas, or traffic safety equipment such as delineators to mark the pole’s location for approaching vehicles.
While designed primarily as a convex mirror support column, the 75mm diameter and 2.5m height also make this pole suitable for mounting small directional signage, warning boards, or lightweight billboard panels at sites requiring a freestanding, ground-fixed post rather than a wall-mounted bracket.
Product Specifications
| PRODUCT SPECIFICATIONS |
| Brand |
BBIM |
| Model Number |
BBIM-00014 |
| Product Type |
Mounting Pole / Column / Post |
| Material |
Galvanized Steel Pipe |
| Diameter |
75mm |
| Height |
2500mm (2.5m) |
| Approximate Weight |
5-7 kg / Unit |
| Mounting Type |
Ground-fixed / Floor-fixed pole (concrete footing recommended) |
| Application |
Convex mirror support, signage column, small billboard mounting |
| Corrosion Resistance |
Good — galvanized coating suited to fully outdoor exposure in Malaysia’s tropical climate |
| Compatible Products |
BBIM convex mirrors (various diameters), lightweight signage and warning boards |
| Colour / Finish |
Galvanized Silver-Grey |
| Standards Compliance |
Suitable for DOSH Malaysia visibility and traffic safety infrastructure guidelines |
PRO Tips — Installation & Maintenance
PRO INSTALLATION & MAINTENANCE TIPS
- Set the pole into a concrete footing at least 400-500mm deep for a 2.5m column, ensuring the base is cured for a minimum of 48-72 hours before mounting a mirror or signage board.
- Use a spirit level during installation to confirm the pole is perfectly vertical — even a slight lean will misalign the convex mirror’s viewing angle once mounted at height.

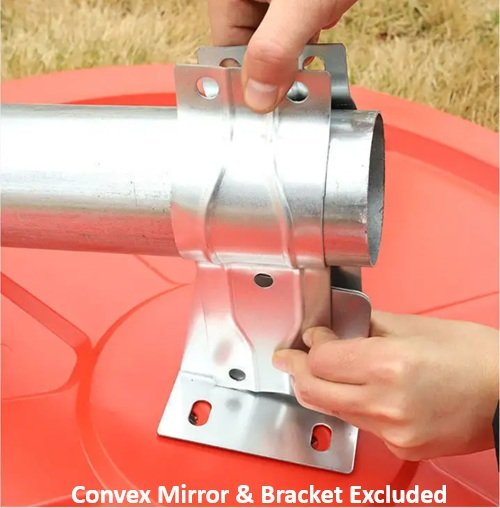

- Position mirror-mounting brackets at 2.0m to 2.3m from ground level on the 2.5m pole to leave adequate clearance below and place the mirror at optimal driver eye-level height.
- Apply touch-up galvanizing paint to any field-cut ends or drilled holes made during installation, as cutting through the galvanized coating exposes bare steel to potential corrosion.
- For high-traffic vehicle areas, install a protective bollard at the base of the pole to prevent accidental vehicle strikes from bending or dislodging the mounting column.
- Inspect the base footing and pole-to-footing joint annually for signs of movement, cracking, or corrosion, particularly after monsoon season or periods of heavy rainfall.
- When mounting signage or billboard panels instead of a mirror, confirm the panel’s wind load rating is compatible with a single 75mm diameter pole, as larger panels may require additional bracing.
|
Applications
Category 1 — Traffic & Road Safety
- Road junction and blind corner convex mirror support
- Driveway and access road visibility mirror columns
- Roundabout and T-junction mirror mounting
- Directional signage support at road intersections
Category 2 — Commercial & Industrial Sites
- Warehouse yard and loading bay mirror mounting
- Car park entrance and exit mirror columns
- Factory compound blind-spot mirror installation
- Commercial signage and small billboard support
Category 3 — Residential & Public Infrastructure
- Condominium and gated community driveway mirrors
- Public park and pedestrian path mirror columns
- School zone visibility mirror mounting
- Community signage and notice board support poles
Features & Benefits
| FEATURE |
BENEFIT |
| Galvanized Steel Pipe Construction |
Excellent corrosion resistance for fully outdoor installations in Malaysia’s tropical rain and humidity |
| 2500mm (2.5m) Height |
Provides ideal elevation for mounting convex mirrors at optimal driver and pedestrian eye-level height |
| 75mm Diameter Pipe |
Sufficient structural rigidity to support mirror weight and wind load without excessive sway |
| Versatile Mounting Applications |
Suitable for convex mirrors, signage boards, and small billboard panels from a single pole design |
| Ground-Fixed Installation |
Provides a freestanding solution at locations without an existing wall or structure for mounting |
| Lightweight 5-7kg Unit |
Manageable for two-person installation without requiring heavy lifting equipment |
| Compatible with BBIM Mirror Range |
Designed to pair seamlessly with BBIM’s convex mirror product line for a complete installation |
| Field-Serviceable Design |
Allows on-site adjustment of bracket height and touch-up coating at cut points during installation |
Frequently Asked Questions (FAQ)
| Q1: What is the diameter and height of the BBIM-00014 mounting pole? |
| A: The pole has a 75mm diameter and stands 2500mm (2.5m) tall, providing a suitable elevation for mounting convex mirrors, signage, or small billboard panels at optimal viewing height. |
| Q2: Does this pole come with a convex mirror included? |
| A: No. The BBIM-00014 is a mounting pole / column sold separately from the mirror itself. It is designed to pair with convex mirrors from the BBIM range, which are sold as separate products. |
| Q3: Can this pole be installed fully outdoors? |
| A: Yes. The galvanized steel construction provides strong corrosion resistance, making this pole suitable for fully outdoor installation, unlike PMMA acrylic mirror bodies which require covered mounting. |
| Q4: What foundation does this pole require? |
| A: We recommend setting the pole into a concrete footing at least 400-500mm deep, allowing 48-72 hours of curing time before mounting a mirror or signage board on top. |
| Q5: What is the weight of the mounting pole? |
| A: Each unit weighs approximately 5-7kg, making it manageable for a two-person installation team without requiring heavy lifting equipment. |
| Q6: At what height should a convex mirror be mounted on this pole? |
| A: We recommend positioning the mirror bracket at 2.0m to 2.3m from ground level on the 2.5m pole, leaving adequate clearance below and placing the mirror at optimal driver eye-level height. |
| Q7: Can this pole be used for signage instead of a mirror? |
| A: Yes. The 75mm diameter pole is also suitable for mounting small directional signage, warning boards, or lightweight billboard panels, though larger panels may require additional bracing. |
Customer Pain Points & BBIM Solutions
| CUSTOMER PAIN POINT |
BBIM SOLUTION |
| No wall or structure available to mount a convex mirror |
This freestanding galvanized steel pole provides a ground-fixed column solution, enabling mirror installation at any location regardless of existing structures. |
| Rust and corrosion on outdoor mounting posts |
Galvanized coating provides strong, long-lasting corrosion resistance suited to Malaysia’s fully outdoor, high-humidity conditions. |
| Mirrors mounted too low or too high for effective viewing |
The 2500mm height allows precise bracket positioning at 2.0m to 2.3m, achieving optimal driver and pedestrian eye-level viewing angles. |
| Vehicles accidentally striking and damaging mounting poles |
Pairing this pole with a protective bollard at its base significantly reduces the risk of vehicle-impact damage in high-traffic areas. |
| Uncertainty over compatibility with existing mirror range |
Designed specifically to complement the BBIM convex mirror product line, ensuring straightforward bracket compatibility and consistent installation. |
Technical Documentation & Order CTA
Included Components
- 1x galvanized steel pipe/post — 75mm(D) x 2500mm(H)
Not Included
Packaging & Logistics
- Shipped individually wrapped to protect the galvanized finish
- Standard pallet quantity: 30 units per pallet
- CBM: approximately 0.02 m3/unit
- Lead time: 7-14 working days (standard order); 21-30 days (OEM/custom height or diameter)
Why Choose BBIM?
BBIM is Malaysia’s trusted supplier of visual safety and traffic infrastructure products, distributed through safety-bbasb.com. Our products are sourced from ISO-certified manufacturers and undergo rigorous quality control inspection before dispatch. We offer:
- OEM / private label manufacturing for custom pole heights and diameters
- Competitive ex-stock and bulk-order pricing across Malaysia
- Technical support and site survey assistance for mirror and signage installations
- Nationwide delivery across Peninsular Malaysia and East Malaysia
- Full product range: convex mirrors, mounting poles, bollards, traffic safety equipment
Disclaimer
Product specifications, dimensions, weights and availability are subject to change without notice. All images are for illustration purposes only. Actual product may differ slightly from images shown. BBIM Safety Products makes no warranty, express or implied, regarding suitability for any specific application, wind load, or mirror/signage weight capacity. Buyers are advised to verify foundation and site suitability, and to consult DOSH Malaysia (dosh.gov.my) guidelines where applicable, prior to procurement. Pricing is subject to confirmation at point of order.
