Flexible Knockdown Bollard
Product Overview

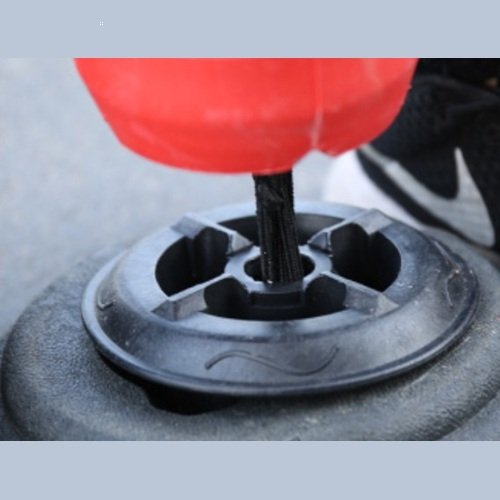

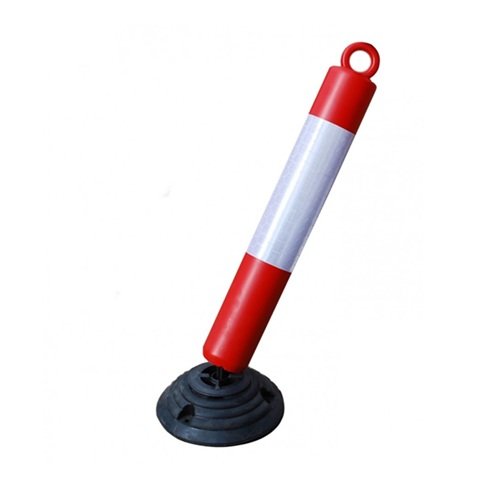

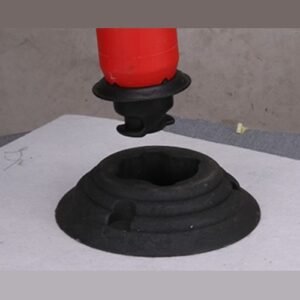

The BBIM flexible knockdown bollard (model BBIM-00053) is a removable, reboundable bollard made from flexible PE that bends under vehicle impact and springs back upright, instead of cracking or staying knocked down like rigid bollards. It is available in two heights, 80cm and 120cm, both 10cm in diameter with a 26cm base, finished in red and white reflective bands with a black base for strong day and night visibility. The base bolts down to concrete or asphalt-on-concrete, so it can be fixed securely yet unbolted and relocated when needed.
This flexible bollard pairs naturally with our access control and bollards, traffic safety equipment and parking safety solutions. Combine it with our coach screw with nylon plug for base fixing, or extend your setup with workplace safety systems and infrastructure protection. Browse the full catalogue at the Blue Box Asia homepage.
Visible, resilient bollards support safer roads and worksites. Refer to DOSH Malaysia for occupational safety guidance and the WHO road traffic injuries fact sheet for the role of channelling and speed control in reducing road injuries. A flexible knockdown bollard keeps doing its job even after being hit.
Product Specifications
| Product | Flexible knockdown bollard, reboundable, removable |
| Model | BBIM-00053 |
| Brand | BBIM |
| Material | PE (flexible body) |
| Colour | Red / white reflective bands, black base |
| Base fixing | Bolts down with coach screw and nylon plug |
| Weight | Approx. 4-5 kg (varies by size) |
| Use | Lane division, car park and driveway marking, road and site channelling |
| Size | Dimensions | Weight |
|---|---|---|
| Size 1 | 80cm (H) x 10cm (dia) x 26cm (base) | Approx. 4 kg |
| Size 2 | 120cm (H) x 10cm (dia) x 26cm (base) | Approx. 5 kg |
PRO Tips
| PRO TIPS FOR YOUR FLEXIBLE BOLLARD
1. Mark and drill the base holes on level, solid concrete or asphalt-on-concrete before fixing. 2. Use coach screws with nylon plugs sized to the base holes for a secure bolt-down fix. 3. Tighten all base bolts evenly so the bollard stands straight and does not wobble. 4. Check the reflective bands periodically and clean off dirt or grime for night visibility. 5. After a vehicle impact, check that the bollard springs back fully upright and the base bolts are still tight. 6. Space bollards evenly along a lane or boundary for a consistent visual guide. 7. Choose the 120cm size where the bollard needs to be seen from taller vehicles or greater distance. |
Applications
| Road & traffic | Lane division, channelling traffic and marking no-entry zones on roads |
| Parking & driveway | Marking car park entrances, driveways and reserved bays where vehicles may clip the base |
| Construction & site | Guiding vehicles around work zones and hazard areas on construction sites |
Features & Benefits
| Feature | Benefit |
|---|---|
| PE flexible body | Bends on impact and reboundable upright, resisting damage |
| Bolt-down base | Removable and relocatable fixing with coach screw and nylon plug |
| Red & white reflective bands | High visibility in daylight and at night |
| Black base | Blends with road and pavement surfaces |
| Two heights: 80cm / 120cm | Fits car parks, driveways, lanes and wider roads |
| 26cm base diameter | Stable footing without a bulky footprint |
Frequently Asked Questions
- What is a flexible knockdown bollard?
A flexible knockdown bollard is a PE bollard that bends flat when hit by a vehicle and reboundable back to standing, instead of snapping or staying knocked over.
- What sizes does the BBIM BBIM-00053 come in?
Two sizes: 80cm (H) and 120cm (H), both 10cm in diameter with a 26cm base, in red and white reflective bands with a black base.
- How is the flexible bollard installed?
The 26cm base bolts down to concrete or asphalt using coach screws with nylon plugs, giving a secure, removable fixing.
- How much does each bollard weigh?
Each bollard weighs roughly 4 to 5kg, depending on the 80cm or 120cm size.
- Does the bollard get damaged when a vehicle hits it?
No. It is designed to flex and spring back upright after impact, unlike rigid bollards which crack or bend permanently.
- Which size should I choose, 80cm or 120cm?
80cm suits car parks and driveways where visibility from a low angle is enough. 120cm is more visible for wider roads, lanes and areas with larger vehicles.
- Can the bollard be removed later?
Yes. Because it bolts down rather than being cast in, it can be unbolted and relocated or removed when no longer needed.
- Do you deliver flexible bollards across Malaysia?
Yes. Blue Box Asia is based in Selangor and supplies single units or bulk orders across Malaysia. Contact us for a quotation.
Customer Pain Points vs Solutions
| Pain point | Our solution |
|---|---|
| Rigid bollards crack or bend after being hit | The flexible PE bollard bends and reboundable upright, avoiding repeat replacement costs. |
| Fixed bollards cannot be relocated | The bolt-down base allows the bollard to be unbolted and moved when plans change. |
| Bollards are hard to see at night | Red and white reflective bands keep the bollard visible under headlights. |
| Installation seems complicated | Standard coach screw and nylon plug fixing makes the bolt-down base straightforward to install. |
| Need reliable local supply for road and site bollards | Blue Box Asia in Selangor supplies single units or bulk orders with fast quotation. |
Technical Documentation & Order
Tell us your site layout, expected traffic and preferred height (80cm or 120cm), and we will confirm quantities and fixing accessories. Specifications are for reference; contact us for datasheets.
| ORDER YOUR FLEXIBLE BOLLARD
Website: www.safety-bbasb.com | Request a quotation for single units or bulk orders |
| ESTIMATED PACKAGING (FOR SHIPPING)
Estimated packed box, 80cm size: approx. 90 x 20 x 20 cm (L x W x H); packed weight approx. 4.5 kg. Estimated packed box, 120cm size: approx. 130 x 20 x 20 cm (L x W x H); packed weight approx. 5.6 kg. |
Why Choose Blue Box Asia
- Local Selangor supplier with fast quotation
- Own BBIM brand for consistent quality and supply
- Reboundable design cuts long-term replacement costs
- Single unit and bulk quantities supported
OEM & Bulk Supply
OEM branding, bulk quantities and project supply can be arranged for contractors, developers and distributors. Contact us with your requirement.
Company Information
Blue Box Asia Sdn Bhd | Malaysian safety products and installation services | www.safety-bbasb.com
Disclaimer
Weights and dimensions are nominal and may vary slightly. Fixing hardware performance depends on surface condition; confirm suitability of the base surface before bolting down.
