Description
Rubber dock bumper Malaysia loading bay D fender
Product Overview
The BB A01-00003 D-Shaped Rubber Dock Bumper is a heavy-duty, marine-grade impact absorption solution engineered for loading bays, jetties, pontoons, wharves, and industrial docking areas across Malaysian warehousing, logistics, and marine sectors. Available in four cross-section sizes — 100mm, 150mm, 200mm, and 300mm (all at 900mm length) — this rubber dock bumper absorbs repeated impact energy from truck docking, vessel berthing, and barge manoeuvring — protecting both infrastructure and vehicle or vessel hulls from damage.
Supplied exclusively through Blue Box Asia Sdn Bhd, Malaysia’s trusted warehouse and marine safety equipment partner, the BB A01-00003 forms part of our comprehensive warehouse loading safety range. The classic D-profile cross-section — with its flat mounting face and rounded impact surface — is the internationally accepted standard for dock fenders: the flat face anchors securely to concrete or steel dock faces, while the curved surface deflects vessel or truck contact forces progressively, eliminating point-impact damage.
The four size variants provide a complete range for Malaysian facilities with different impact loads: the 100mm and 150mm variants serve light-duty applications such as small craft jetties and light vehicle loading bays; the 200mm variant handles medium-duty truck docking and larger vessel berthing; and the 300mm super-heavy variant is engineered for port infrastructure, heavy barge operations, and high-tonnage truck marshalling — meeting DOSH Malaysia occupational safety standards for loading dock safety.
Constructed from dense recycled rubber compound, the BB A01-00003 is inherently resistant to salt water, oil, fuel, and Malaysia’s tropical UV exposure — making it equally suited for indoor warehouse loading bays and outdoor coastal marine applications. For comprehensive loading area safety, pair the rubber dock bumper with our parking safety solutions, wheel stoppers and truck chocks, convex mirrors for dock visibility, and cable protectors and ramps to build a comprehensive dock safety system.
Product Specifications & Variant Comparison
| Specification | Details |
| Brand | BB |
| Model No. | A01-00003 |
| Product Name | D-Shaped Rubber Dock Bumper — Loading Bay D Fender |
| Profile Shape | D-Profile (flat mounting face + rounded impact surface) |
| Length (All variants) | 900 millimetres |
| Material | Recycled Rubber Compound — dense, marine-grade |
| Colour | Black (standard) |
| Hardness | Engineered for progressive impact absorption (Shore A hardness) |
| Salt Water Resistance | Yes — fully resistant to marine salt-spray and immersion |
| Oil & Fuel Resistance | Yes — recycled rubber engineered for fuel and oil contact |
| UV Resistance | Yes — UV-stabilised for outdoor tropical Malaysian use |
| Temperature Range | -20°C to +60°C operational — suitable for Malaysian climate |
| Surface Mounting | Flat face bolt-down to concrete, steel, or timber dock face |
| Hardware (Not Included) | Standard through-bolts and washers (stainless steel recommended for marine use) |
| Compliance | DOSH Malaysia, JKR workplace safety standards for loading dock installations |
| Lifespan | 5+ years in typical dock and loading bay applications |
| Supplier | Blue Box Asia Sdn Bhd (safety-bbasb.com), Selangor, Malaysia |
Size Variant Comparison
| Specification | Variant S — 100mm | Variant M — 150mm | Variant L — 200mm | Variant XL — 300mm |
| Length | 900mm | 900mm | 900mm | 900mm |
| Width | 100mm | 150mm | 200mm | 300mm |
| Height | 100mm | 150mm | 200mm | 300mm |
| Application | Light marine / dock edge | Medium vessel / loading bay | Heavy-duty dock fender | Super-heavy port / barge |
| Typical Use | Small boats, light jetty | Medium vessel, loading bay | Heavy trucks, large vessels | Port infrastructure, barges |
| Cross-Section Area | 100×100mm | 150×150mm | 200×200mm | 300×300mm |
PRO Tips
| 💡 PRO TIPS — D-Shaped Rubber Dock Bumper / D Fender (All Variants)
1. Select the correct size variant based on the maximum contact force expected: 100mm for light vehicles and small craft; 150mm for medium trucks and boats; 200mm for heavy lorries and commercial vessels; 300mm for port-grade barge and heavy vehicle operations. Undersizing creates premature failure — oversizing wastes cost. 2. For loading bays receiving trailer trucks, install bumpers at truck bumper height (typically 1.0–1.2 metres from floor level) with a minimum of two bumpers per bay spaced at truck width (approximately 2.0–2.5 metres apart) — this ensures contact on both sides of the truck simultaneously. 3. In marine applications, use stainless steel through-bolts for mounting (Not Included)— standard galvanised bolts corrode within 2–3 years in salt water, causing fender detachment. Invest in grade 316 stainless hardware for lasting installation. 4. Install bumpers at a slight inward angle (5–10 degrees from vertical) on jetty or dock faces — this natural lean absorbs horizontal impact forces more effectively than perfectly vertical mounting. 5. For outdoor loading bays exposed to Malaysian monsoon rain, drill a small drainage hole (6mm) at the lowest point of the D-bumper body — this prevents water accumulation inside the rubber hollow that could accelerate internal degradation. 6. Inspect dock bumpers quarterly for compression set, cracking, or bolt loosening — heavy vehicle docking creates cumulative impact fatigue. Replace bumpers showing more than 30% permanent compression to maintain effective protection. 7. For warehouse loading bays handling refrigerated vehicles (cold store operations), select the 200mm or 300mm variants — lower temperatures increase rubber hardness and reduce impact absorption in smaller variants. |
Applications
| 🏭 Warehouse & Logistics
Truck loading bays, lorry docking stations, distribution centre dock faces, cold store loading, goods receiving areas |
⚓ Marine & Port

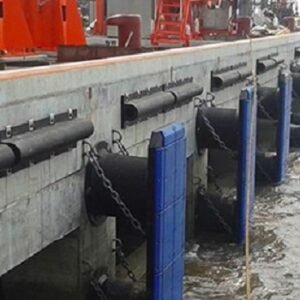

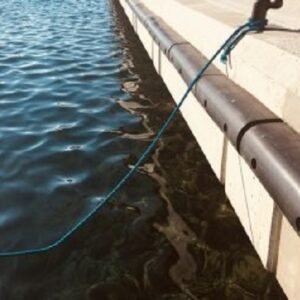

Jetties, pontoons, wharves, fishing boat landings, marina berths, barge docking, port quayside protection |
🏢 Industrial & Commercial
Retail goods delivery bays, supermarket loading zones, factory raw material receipt, airport cargo handling |
Features & Benefits
| Feature | Benefit |
| Classic D-Profile Shape | Flat mounting face for secure bolt-down installation; rounded surface for progressive impact deflection — the internationally standard dock fender design. |
| 4 Size Variants (100–300mm) | Light to super-heavy duty coverage in one product range — select the right cross-section for your specific impact load. |
| 900mm Standard Length | Accommodates standard truck and vessel contact widths with minimal bumpers required per bay. |
| Marine-Grade Recycled Rubber | Fully resistant to salt water, oil, fuel, and UV — dual-purpose for both warehouse and marine installations. |
| Progressive Impact Absorption | D-profile deflects contact forces progressively, distributing energy across the surface rather than transmitting to dock structure. |
| 5+ Year Service Life | Heavy-duty recycled rubber maintains shape and performance for 5+ years in typical dock applications — lowest total cost of ownership. |
| Simple Bolt-Down Installation | Flat face mounts directly to concrete, steel, or timber dock faces with standard hardware — no specialist equipment required. |
| DOSH & JKR Compliance | Meets Malaysian workplace safety standards for loading dock and marine safety barrier installations. |
Frequently Asked Questions (FAQ)
Q1: How do I choose the right D-bumper size variant for my application?
A: Select based on maximum impact load: 100mm for light vehicles and small craft; 150mm for medium trucks and boats under 5 tonnes; 200mm for heavy lorries and commercial vessels; 300mm for port-grade barges and high-tonnage operations. When in doubt, upsize — a larger variant absorbs more energy and extends service life.
Q2: Can the D-shaped rubber bumper be used in both marine and warehouse applications?
A: Yes. The recycled rubber compound is engineered for both environments. For marine use, specify stainless steel mounting hardware to resist salt corrosion. For warehouse use, standard galvanised bolts are sufficient for indoor loading bays.
Q3: How is the D-bumper mounted to concrete dock faces or loading bay walls?
A: The flat face of the D-profile is drilled and bolted directly to concrete or steel surfaces using through-bolts and washers. Minimum two bolt points per 900mm length are recommended. For marine installations, use grade 316 stainless steel bolts.
Q4: What maintenance does the D-shaped rubber dock bumper require?
A: Minimal — rinse quarterly with fresh water (especially in marine/coastal locations) and inspect bolt tightness every six months. Rubber bumpers require no painting, rust treatment, or chemical maintenance. Replace when compression set exceeds 30% of original profile height.
Q5: Are all four size variants available from stock in Malaysia?
A: Yes. All four cross-section variants (100mm, 150mm, 200mm, 300mm) are available from Blue Box Asia’s Selangor warehouse. Contact us for current stock levels, bulk pricing, and nationwide delivery.
Q6: Does Blue Box Asia offer custom lengths beyond the standard 900mm?
A: Yes. Custom lengths can be sourced on request — consult Blue Box Asia for project-specific requirements and lead times. Standard 900mm units can also be joined end-to-end for longer continuous dock face coverage.
Customer Pain Points vs Solutions
| ⚠ Pain Point | ✔ Our Solution |
| Unprotected concrete loading bays crack and spall after repeated truck docking — expensive structural repair and replacement costs | BB D-bumpers absorb all docking impact forces before they reach concrete surfaces — protecting dock infrastructure indefinitely. |
| Steel or timber dock bumpers corrode and rot in Malaysia’s salt-spray, rain, and tropical humidity — requiring frequent costly replacement | Recycled rubber is immune to corrosion, rot, and tropical degradation — maintains performance for 5+ years without replacement. |
| One-size-fits-all dock bumpers are undersized for heavy truck or vessel loads — failing quickly and providing inadequate protection | Four size variants (100–300mm) ensure optimal impact matching — light to super-heavy applications covered by a single product range. |
| Rigid steel or concrete dock faces cause vehicle bumper and boat hull damage during contact — resulting in repair costs and disputes | D-profile progressive impact deflection protects vehicles and vessels at contact — minimising damage claims and insurance incidents. |
| Dock bumper installation failures from incorrect hardware — bolt corrosion or pullout causes bumper detachment and dock face damage | Grade 316 stainless hardware recommendations built into every installation — preventing corrosion-related mounting failures. |
Technical Documentation & Order
The BB A01-00003 D-Shaped Rubber Dock Bumper is engineered and supplied in accordance with the following Malaysian and international dock and loading safety standards:
- DOSH Malaysia — Occupational Safety & Health Act 1994 (Act 514): Loading dock safety, vehicle marshalling, and dock infrastructure protection requirements
- JKR/PWD Malaysia — Industrial Facility & Warehouse Loading Bay Safety Guidelines: Bumper specifications and dock face protection standards
- PIANC (World Association for Waterborne Transport Infrastructure) — Marine Fender Design Guidelines: D-profile rubber fender selection and installation standards
- ISO 17357 — Rubber Fenders for Marine and Port Applications: Material performance and dimensional standards for D-profile rubber fenders
| 📦 READY TO ORDER?
Contact Blue Box Asia Sdn Bhd — all 4 size variants in stock | bulk project pricing available 🌐 www.safety-bbasb.com | 📧 sales@safety-bbasb.com Model: A01-00003 | Brand: BB | Fast Delivery — Selangor & Nationwide Malaysia |
Why Choose Blue Box Asia | OEM | Company Info
✅ Malaysia’s Dock Safety & Loading Bay Specialist
Blue Box Asia Sdn Bhd is the trusted partner for warehouses, logistics, distribution, and marine facilities across Malaysia — providing complete loading dock and fender protection solutions.
✅ Full Range in Stock — All 4 Size Variants
All cross-section variants (100mm, 150mm, 200mm, 300mm) are maintained in stock at our Selangor warehouse — enabling rapid delivery for project needs.
✅ Marine & Industrial Dual Expertise
We supply dock bumpers for both industrial loading bays and marine applications — understanding the different hardware, mounting, and material requirements of each environment.
✅ Complete Loading Dock Safety Ecosystem
From D-fenders and wheel stoppers to convex mirrors and cable protectors — Blue Box Asia covers all loading dock and warehouse safety equipment needs.
✅ DOSH & JKR Compliance Confidence
Our products meet Malaysian workplace safety and marine installation standards — providing regulatory compliance for facilities subject to DOSH inspection.
| DISCLAIMER
Product specifications are subject to change without prior notice. Selection of correct size variant is the responsibility of the purchaser based on application load requirements. Installation must comply with local authority and facility-specific safety requirements. For critical marine or port applications, consult a qualified marine engineer for fender selection and mounting design. Blue Box Asia Sdn Bhd makes no warranty beyond the manufacturer’s standard terms. |
